CUI Inc SWI20C AC/DC Power Adapters

CUI Inc SWI20C AC/DC Power Adapters feature two adapters designed for European and North American fixed blade inputs. The SWI20C-E adapter provides a European 2-pin inlet plug and complies with EN 55032 standards. The SW120C-N adapter provides a North American 2-pin inlet plug and is certified to meet UL 62368-1 safety standards. CUI Inc SWI20C AC/DC Power Adapters offer USB power delivery (PD) 3.0, which protects from overcurrent, overvoltage, and short circuit issues. The adapters have a 20W max power rating, 5V_DC to 12V_DC output voltage range, and an 82% to 86% typical efficiency. The SWI20C series is RoHS compliant.

Features

SWI20C-E
- USB PD 3.0; 5V, 15W; 9V, 20W; 12V, 20W
- Available in black or white
- European fixed blade input (2-pin inlet plug)
- USB Type-C output connector
- IEC-62368-1; LPS
- EN 55032 compliant
- Overcurrent, overvoltage, and short circuit protection

SW120C-N
- USB PD 3.0; 5V, 15W; 9V, 20W; 12V, 20W
- Available in black or white
- North American fixed blade input
- USB Type-C output connector
- UL 62368-1; LPS
- FCC and J55032 compliant
- Overcurrent, overvoltage, and short circuit protection

Specifications

90V_AC to 264V_AC input voltage range
5V_DC to 12V_DC output voltage range
3A to 1.66A max output current range
15W to 20W max output power range
47Hz to 63Hz frequency range

300mV_p-p max ripple and noise rating
82% to 86% typical efficiency level range
0°C to +40°C operating temperature range
-20°C to +60°C storage temperature range
RoHS compliant

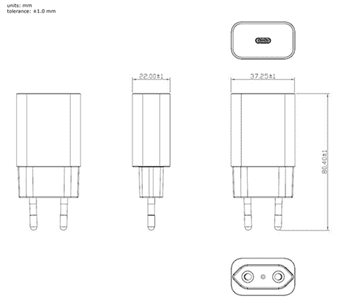

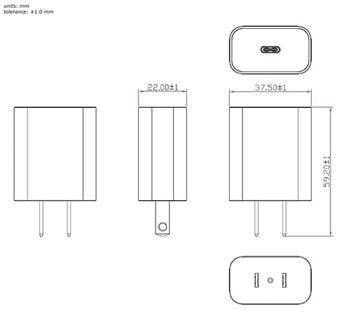

Mechanical Drawings

Chart - CUI Inc SWI20C AC/DC Power Adapters
