CUI Inc SMI45C AC/DC Power Adapters

CUI Inc SMI45C AC/DC Adapters feature USB Type-C™ adapters with a 45W max output power. The multi-blade adapters offer a 5V_DC to 20V_DC output voltage range, a 264V_AC max input voltage, and a 63Hz max frequency rating. CUI Inc SMI45C AC/DC Adapters provide overvoltage, overcurrent, and short circuit protection within a 0°C to +40°C ambient operating temperature range. The SMI45C series is PD 3.0/RoHS compliant and UL 62368 certified.

Features

15W to 45W max output power
3A to 2.25A max output current
5V_DC to 20V_DC output voltage
264V_AC max input voltage
63Hz max frequency rating
0.25mA leakage current
0°C to +40°C ambient operating temperature range

Overvoltage protection
Overcurrent protection
Short circuit protection
Universal input voltage range
Available in black or white
PD 3.0 compliant
UL 62368 certified
RoHS compliant

CUI Inc SMI45C AC/DC Power Adapters

Features

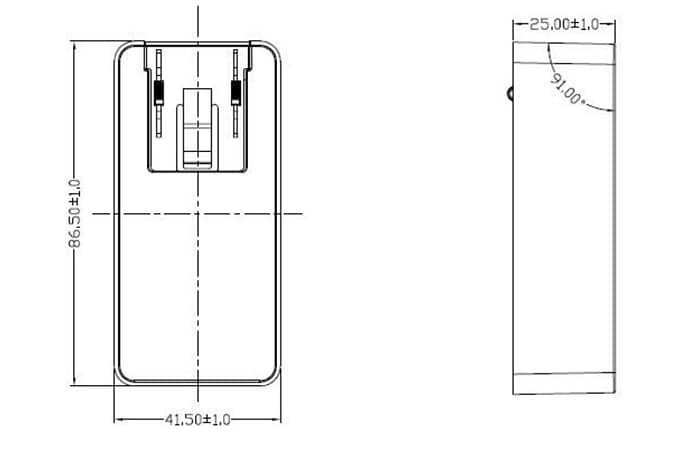

Mechanical Drawing (mm)
