CUI Inc SDI90B AC-DC Desktop Adapters

CUI Inc SDI90B AC-DC Desktop Adapters are 90W commercial grade adapters with a Limited Power Source (LPS) rating. These adapters feature active power factor correction and a no-load power consumption of less than 0.21W. The SDI90B desktop adapters support input voltage ranges from 90V_AC to 264V_AC and offer short-circuit, over-voltage, over-current, and over-temperature protections. These adapters are certified to 62368-1 standards and operate within the -20°C to 60°C/70°C temperature range with derating. The SDI90B desktop adapters feature level VI efficiency, UL/cUL, PSE, and UKCA safety approvals and come in a 133.5mm x 53.5mm x 33.0mm case.

Features

Commercial grade
Limited Power Source (LPS) rated
Active power factor correction
No-load power consumption less than 0.21W

Over-voltage, over-current, short-circuit, and over-temperature protections
Level VI efficiency

Specifications

90W power
90V_AC to 264V_AC input voltage range
47Hz to 63Hz input frequency range
1.2A input current
3.5mA input leakage current

Certified to 62368-1 standards
Operate within the -20°C to 60°C/70°C range with derating
UL/cUL, PSE, and UKCA safety approvals
133.5mm x 53.5mm x 33.0mm case size

CUI Inc SDI90B AC-DC Desktop Adapters

Features

Specifications

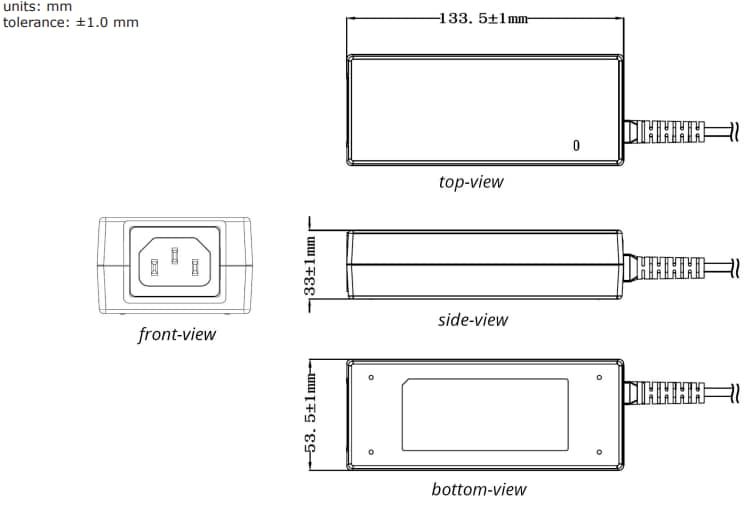

Mechanical Drawing
