CUI Inc SDI120B Desktop Adapters

CUI Inc SDI120B Desktop Adapters feature two input options with three prongs: SDI120B-T and SDI120B-U. The SDI120B-T adapters provide a C6 inlet, and the SDI120B-U adapters provide a C14 inlet. The CUI Inc SDI120B Desktop Adapters offer universal input from 90V_AC to 264V_AC, 120W max power, and a level VI efficiency rating. The desktop adapters facilitate users’ experience by providing power factor correction. The SDI120B series is RoHS compliant and provides protection against overvoltage, overcurrent, overtemperature, and short-circuiting.

Features

Level VI efficiency
120W power rating
Universal input (90V_AC to 264V_AC)
Power factor correction
IEC320/C6 AC inlet (SDI120B-T)
IEC320/C14 AC inlet (SDI120B-U)
Overvoltage protection

Overcurrent protection
Over temperature protection
Short circuit protection
140.5mm x 60mm x 35mm case size
Certified to 62368-1 standards
UL/cUL, PSE, UKCA safety approvals
RoHS compliant

Specifications

12V_DC to 56V_DC output voltage
9A to 2.14A max output current
108W to 120W max output power
120mV_p-p to 560mV_p-p max ripple and noise

47Hz to 63Hz frequency rating
1.6A max input current
-20°C to +40°C operating temperature range
-20°C to +80°C storage temperature range

Mechanical Drawings

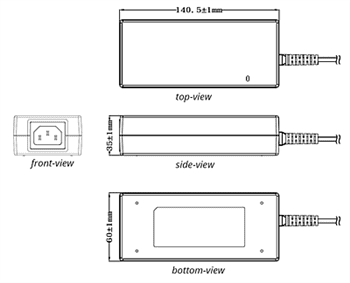

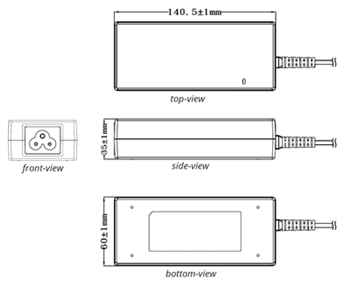

Mechanical Drawing - CUI Inc SDI120B Desktop Adapters
