CUI Inc PYSE1-D Unregulated DC-DC Converters

CUI Inc PYSE1-D Unregulated DC-DC Converters are designed to offer improved efficiency, higher isolation, and superior thermal performance. These 1W isolated power modules are available in a compact DIP package and operate at -40°C to 105°C extended operating temperature range. The PYSE1-D converters feature 1:1 input range, continuous short circuit protection, and offer up to 81% efficiency. These low-power converters are ideal for industrial, telecom, and IoT applications.

Features

  • Industry-standard 7 pin DIP package
  • Single unregulated output
  • Continuous short circuit protection
  • Improved efficiency
  • High isolation
  • Superior thermal performance

Specifications

  • 1W isolated output
  • 1:1 input range
  • 1500VDC isolation
  • 10.8VDC to 26.4VDC input voltage range
  • Up to 81% efficiency
  • EN/UL 62368 safety approvals
  • -40°C to 105° operating temperature range
  • 12.7mm x 10.16mm x 8.2mm dimensions

Applications

  • Industrial
  • Telecom
  • IoT

Dimensions

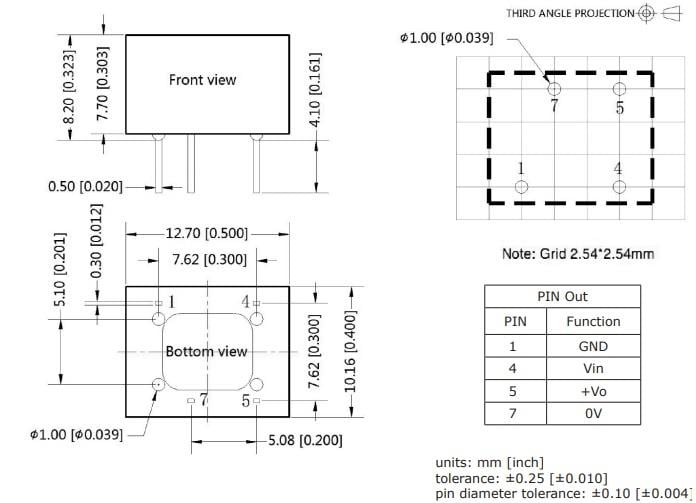

Mechanical Drawing - CUI Inc PYSE1-D Unregulated DC-DC Converters
