CUI Inc PYBJ3 3W DC-DC Converters

CUI Inc PYBJ3 3W DC-DC Converters are high efficiency (up to 82%), single-output converters with 3W isolated output. CUI Inc PYBJ3 is available with or without a case and features an ultra-wide input voltage range (4.5V_DC to 9V_DC or 9V_DC to 36V_DC). The series offers 1500V_DC isolation and is EN62368 approved.

Features

3W isolated output
Ultra-wide input voltage range
Single regulated output
High efficiency up to 82%

Output short circuit, over current, over-voltage protection
1500V_DC isolation
Available with or without a case
EN62368 approved

Specifications

Input voltage
- 5V_DC or 24V_DC typical
- 4.5V_DC to 9V_DC or 9V_DC to 36V_DC range

3.3V_DC, 5V_DC, 12V_DC, 15V_DC, or 24V_DC output voltage
Up to 600mA maximum output current
100mV_p-p maximum ripple and noise

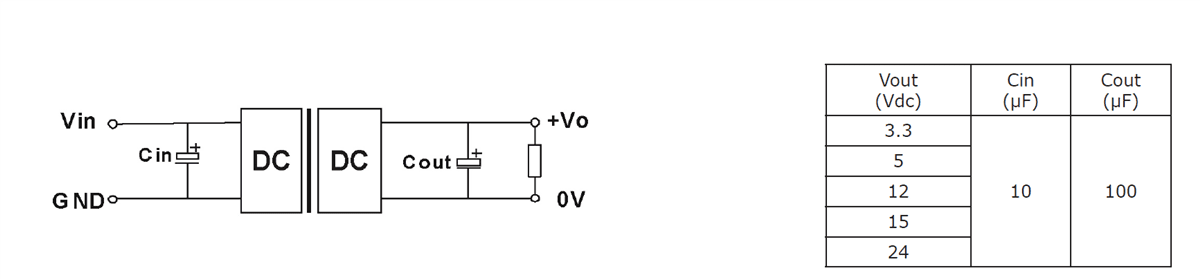

Application Circuit

Application Circuit Diagram - CUI Inc PYBJ3 3W DC-DC Converters
