CUI Inc PSK-S60B Power Supplies w/ Power Boost Option

CUI Inc PSK-S60B Power Supplies with Power Boost Option are housed in a compact, board-mount package that offers 3kV_AC isolation and a -30°C to +70°C operating temperature range. These 40W/60W encapsulated power supplies feature <150mW no-load power consumption and a 5V_DC to 48V_DC voltage configuration range. The optional power boost can double the rated current to support large transient loads, enabling users to design for nominal power rather than peak. This boost can double the rated output power provided to the load for a maximum of 10s and a repeated duty cycle of 10%. CUI Inc PSK-S60B power supplies are ideal for space-constrained, low-power information technology equipment (ITE), consumer electronics, and industrial applications.

Features

Optional power boost (supports transient loads up to 2x rated current)
Class II construction
Encapsulated
Board mount

Commercial grade
Overvoltage and short-circuit protections
CISPR32 EN 55032 Class B compliant
UL/EN/IEC 62368 certified

Applications

Consumer electronics
Industrial
ITE

Specifications

5V_DC to 48V_DC voltage configuration range
Universal input voltage range of 90V_AC to 264V_AC
<150mW no-load power consumption
3kV_AC isolation

54.25mm x 54.25mm x 35.80mm dimensions (2.136″ x 2.136″ x 1.409″)
-30°C to +70°C operating temperature range

CUI Inc PSK-S60B Power Supplies w/ Power Boost Option

Features

Applications

Specifications

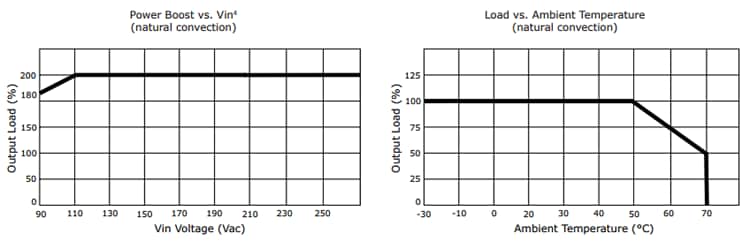

Derating Curves
