CUI Inc PRC60W DC-DC Converters

CUI Inc PRC60W DC-DC Converters feature a 60W continuous power rating, a 4:1 input range, and single regulated outputs. The converters offer built-in protective measures, including short-circuit, overcurrent, overtemperature, and overvoltage protection. The CUI Inc PRC60W DC-DC Converters provide a 40V_DC to 160V_DC input voltage range and a 5V_DC to 48V_DC output voltage range within a -40°C to +105°C operating temperature range. The PRC60W converters are RoHS compliant and meet EN 50155 and EN 45545-2 requirements. The converters are ideal for commercial, railway, and industrial applications.

Features

Single regulated outputs
4:1 input range
Short circuit protection
Overcurrent protection
Overtemperature protection

Overvoltage protection
Remote on/off function
Output voltage trim
Meets EN 50155 and EN 45545-2
RoHS compliant

Applications

Commercial
Railway
Industrial

Specifications

40V_DC to 160V_DC input voltage range
5V_DC to 48V_DC output voltage range
12A to 1.25A max output current range
60W max output power rating

100mV_p-p to 200mV_p-p ripple and noise range
88.5% to 90% typical efficiency
-40°C to +105°C operating temperature range
-55°C to +125°C storage temperature range

CUI Inc PRC60W DC-DC Converters

Features

Applications

Specifications

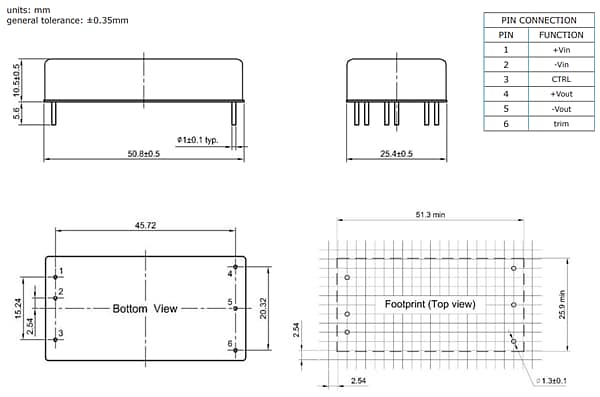

Mechanical Drawing

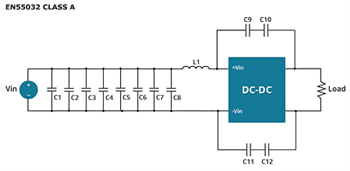

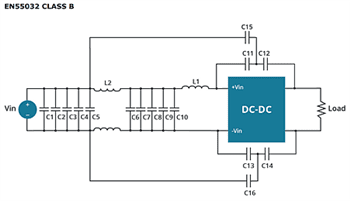

EMI Recommended Circuits
