CUI Inc PQME1-M DC-DC Converters

CUI Inc PQME1-M DC-DC Converters are designed to offer 0.74W isolated output with an efficiency of about 74%. These DC-DC converters feature 1500V_DC isolation, no load input current as low as 5mA, 270kHz typical switching frequency, and continuous short circuit protection. The PQME1-M DC-DC converters come in a compact SMT package with industry-standard pin-outs and operate within -40°C to 85°C temperature range. These DC-DC converters are RoHS compliant and also comply with EN 62368-1 standard.

Features

0.75W isolated output
Regulated output
Compact SMT package
Single output models
Continuous short circuit protection
1500V_DC isolation
270kHz switching frequency

No load input current as low as 5mA
Industry standard pin-out
Up to 74% efficiency
-40°C to 85°C temperature range
EN 62368-1

CUI Inc PQME1-M DC-DC Converters

Features

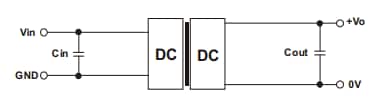

Application Circuit Diagram

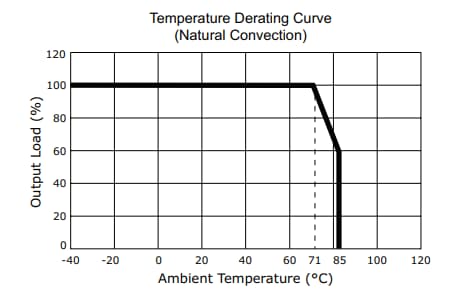

Derating Curve
