CUI Inc PGNM2-S/PGNP2-S DC-DC Converters

CUI Inc PGNM2-S/PGNP2-S DC-DC Converters with unregulated single/dual outputs offer 2W isolated output power. These DC-DC converters feature 6000V_DC isolation, -40°C to 105°C operating temperature range 200kHz typical switching frequency, reinforced insulation, and continuous output short-circuit protection. The PGNM2-S/PGNP2-S converters are designed to meet EN 62368-1 and certified to EN/UL 60601-1 standards. These DC-DC converters are housed in a compact SIP package and are ideal for medical instrumentation, consumer electronics, industrial electronics, and EV charging applications.

Features

2W isolated output power
Designed to meet EN 62368-1
Unregulated single/dual outputs
6000V_DC isolation
Less than 2μA leakage current (at 230V_AC, 50Hz/60Hz)
Reinforced insulation

Continuous output short-circuit protection
Certified to EN/UL 60601-1
200kHz typical switching frequency
5% to 95% storage humidity range (non-condensing)
-40°C to 105°C operating temperature range

Applications

EV charging
Consumer electronics

Medical instrumentation
Industrial electronics

CUI Inc PGNM2-S/PGNP2-S DC-DC Converters

Features

Applications

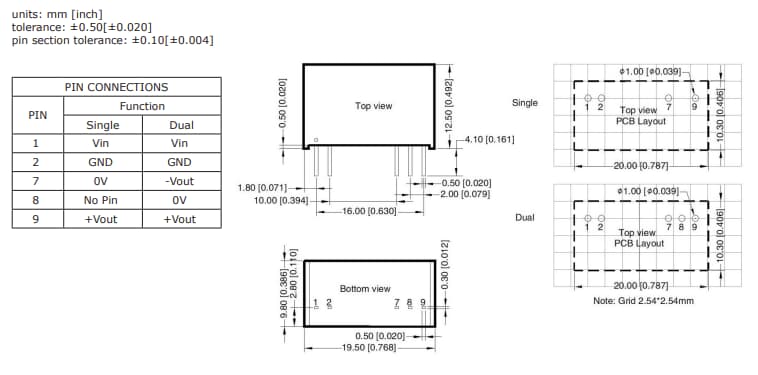

Mechanical Diagram

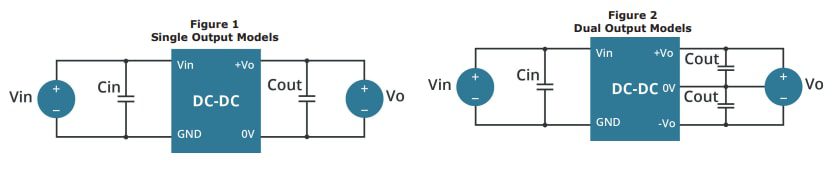

Application Circuit Diagrams
