View Datasheet

CUI Inc PEME2-S 2W Isolated DC-DC Converters

CUI Inc PEME2-S 2W Isolated DC-DC Converters feature 2W isolated output and single/dual unregulated output. These CUI Inc DC-DC converters offer up to 3000VDC isolation and up to 86% efficiency. These 2W devices provide continuous short circuit protection and operate over a -40°C to +105°C temperature range. CUI Inc PEME2-S 2W Isolated DC-DC Converters feature no-load input current as low as 8mA and efficiency up to 86%.

The CUI Inc PEME2-S 2W Isolated DC-DC Converters are available in a 19.65mm x 7.05mm x 10.16mm flame-retardant and heat-resistant plastic package.

Features

  • 2W isolated output
  • Single/dual unregulated output
  • 3000VDC isolation
  • Up to 86% efficiency
  • -40°C to +105°C operating temperature range
  • Continuous short circuit protection
  • No-load input current as low as 8mA
  • EN 62368-1
  • UL 62368-1

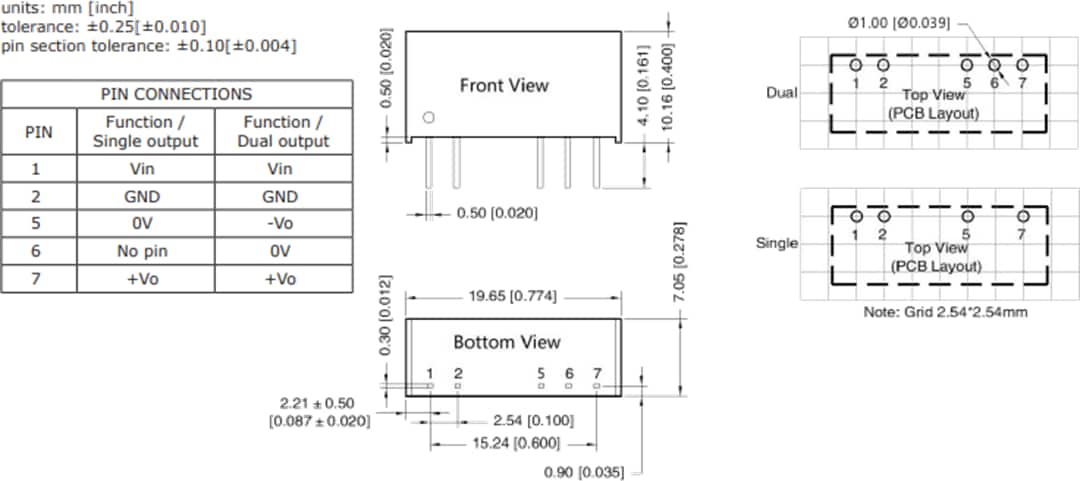

Package Outline

Mechanical Drawing - CUI Inc PEME2-S 2W Isolated DC-DC Converters
