CUI Inc PDSE1-M DC-DC Converters

CUI Inc PDSE1-M DC-DC Converters are designed to offer 1W isolated output with an efficiency of about 85%. These DC-DC converters feature 1500VDC isolation, unregulated output, no load input current as low as 5mA, 270kHz typical switching frequency, and continuous short circuit protection. The PDSE1-M DC-DC converters come in a compact SMT package and operate within -40°C to 105°C temperature range. These DC-DC converters are UL 62368 approved, RoHS compliant, and also comply with EN 62368-1 standard.

Features

  • 1W isolated output
  • Unregulated output
  • Compact SMT package
  • Single/dual output models
  • Continuous short circuit protection
  • -40°C to 105°C extended temperature range
  • 1500VDC isolation
  • 270kHz switching frquency
  • No load input current as low as 5mA
  • UL 62368 approval
  • Efficiency up to 85%
  • EN 62368-1

Application Circuit Diagrams

Application Circuit Diagram - CUI Inc PDSE1-M DC-DC Converters

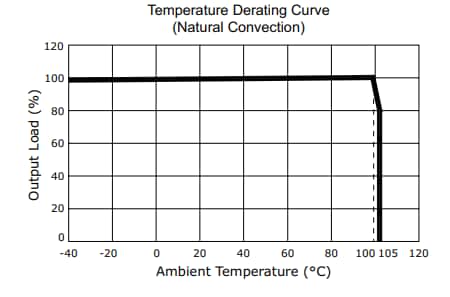

Derating Curve

Performance Graph - CUI Inc PDSE1-M DC-DC Converters

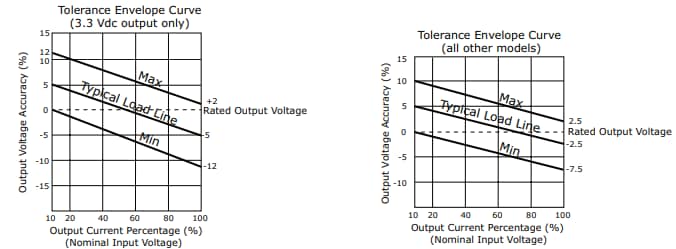

Tolerance Envelope Curve

Performance Graph - CUI Inc PDSE1-M DC-DC Converters
