CUI Devices PTN06 6mm Rotary Precision Potentiometers

CUI Devices PTN06 6mm Rotary Precision Potentiometers feature a 6mm carbon element housed in a dust-proof enclosure with multiple rotor and taper options. Taper options include linear, logarithmic, and reverse logarithmic. The vertical or horizontal-orientated PTN06 potentiometers range in resistance from 1.0kΩ to 2000kΩ with ±10% or ±20% standard tolerance options. The CUI Devices PTN06 shaftless potentiometers carry an operating temperature range from -10°C to +70°C and a rotational life of 10,000 cycles.

Features

6mm carbon element
Dust-proof enclosure
Through-hole mounting
Multiple rotor options

Linear, logarithmic, and reverse logarithmic tapers
Shaftless style
No detent or bushing
RoHS compliant

Specifications

200V_DC maximum operating voltage
0.15W maximum power rating at +70°C
1.0kΩ to 2000kΩ standard resistance range
±10% or ±20% standard resistance tolerance options
10Ω maximum residual resistance
68mV maximum sliding noise
-10°C to +70°C operating temperature range
+350°C maximum hand soldering temperature for 3s maximum

+255°C to +265°C wave soldering temperature range, +260°C typical (for 5s ±1s)
Mechanical
- 225° to 245° mechanical angle range, 235° typical
- 10gf-cm to 80gf-cm rotational torque
- 400gf-cm minimum stop strength
- 10,000-cycle rotational life
- 0.18g to 0.19g weight range

CUI Devices PTN06 6mm Rotary Precision Potentiometers

Features

Specifications

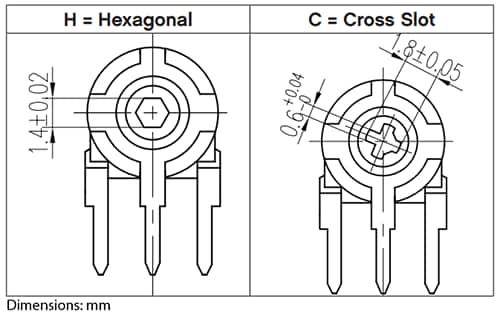

Rotor Types

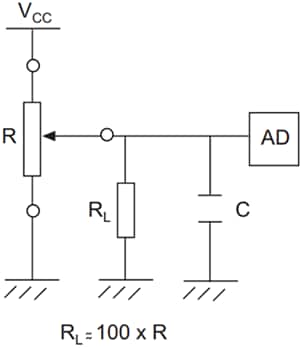

Recommended Circuit
