CUI Devices Illuminated Buzzers

CUI Devices Illuminated Buzzers feature four series of buzzers with visual and audible indicators with continuous light and pulsing light options. The CLI-175X-83T and CLI-3623-95T series buzzers offer a constant-tone LED indicator with four color options, including red, green, blue, and yellow. The CMI-1295-85T series indicators are washable, magnetic buzzers that provide a constant audible tone. The CPT-3010-90T series features Piezo technology and a 90dB sound pressure level at 10cm. CUI Devices Illuminated Buzzers are ideal for applications where visual and audible indicators are necessary.

Features

  • CLI-175X-83T
    • Four color options (red, green, blue, yellow)
    • Constant tone
    • Indicator
  • CLI-3623-95T
    • Four color options (red, green, blue, yellow)
    • Constant tone
    • Indicator
    • Mounting nut included
  • CMI-1295-85T
    • Magnetic
    • Constant tone
    • Washable
  • CPT-3010-90T
    • Piezo
    • 90dB at 10cm
    • Through-hole

Specifications

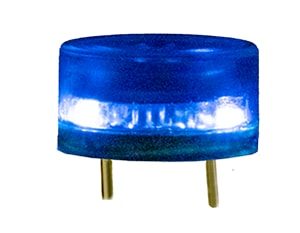

  • CLI-175X-83T
    • 12VDC typical rated voltage
    • 6VDC to 15VDC operating voltage range
    • 12mA current consumption at rated voltage
    • 3600Hz to 4600Hz rated frequency range
    • 83dB sound pressure level at 10cm, rated voltage
    • 13.8mm x 7.5mm dimensions
    • 1g weight
    • Tin-plated brass terminal pins
    • -20°C to +100°C operating temperature range
    • -30°C to +110°C storage temperature range
    • RoHS compliant

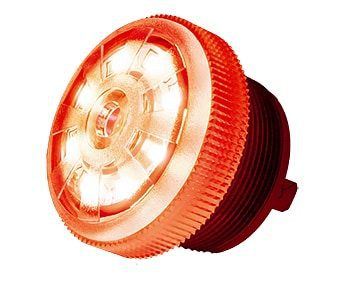

  • CLI-3623-95T
    • 12VDC typical rated voltage
    • 3VDC to 15VDC operating voltage range
    • 18mA current consumption at rated voltage
    • 3000Hz to 4000Hz rated frequency range
    • 95dB min sound pressure level at 30cm
    • 36.5mm x 23.5mm dimensions
    • 21g weight
    • Tin-plated brass terminal pins
    • -20°C to +70°C operating temperature range
    • -30°C to +80°C storage temperature range
    • RoHS compliant

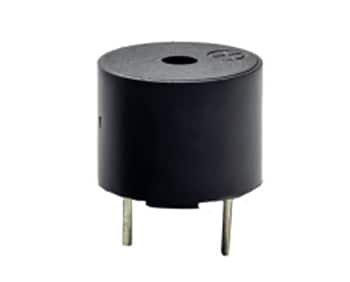

  • CMI-1295-85T
    • 3VDC typical rated voltage
    • 2VDC to 5VDC operating voltage range
    • 30mA current consumption at rated voltage
    • 1900Hz to 2700Hz rated frequency
    • 85dB sound pressure level at 10cm
    • 12mm x 10mm dimensions
    • 1.6g weight
    • Tin-plated brass terminal pins
    • -20°C to +70°C operating temperature range
    • -30°C to +80°C storage temperature range
    • RoHS compliant

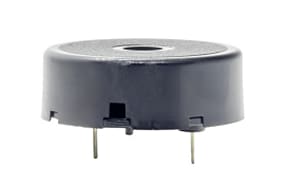

  • CPT-3010-90T
    • 5Vp-p rated voltage
    • 30Vp-p operating voltage range
    • 1.5mA current consumption at rated voltage
    • 2000Hz to 3000Hz rated frequency
    • 90dB at 10cm
    • 30mm x 12mm dimensions
    • 4.4g weight
    • Tin-plated brass terminal pins
    • -20°C to +70°C operating temperature range
    • -30°C to +80°C storage temperature range
    • RoHS compliant

Buzzers Overview

Chart - CUI Devices Illuminated Buzzers

Chart - CUI Devices Illuminated Buzzers

Chart - CUI Devices Illuminated Buzzers

Chart - CUI Devices Illuminated Buzzers
