Crystek Corporation CCPD-575 Ultra-Low Phase Noise Clock Oscillators

Crystek Corporation CCPD-575 Ultra-Low Phase Noise Clock Oscillators are SMD, LVPECL oscillators with a typical noise floor at -162dBc/Hz in a 5mm x 7.5mm package. This is at least 15dB lower phase noise than most LVPECL oscillators on the market. Close-in phase noise is also excellent at -90dBc/Hz for the 100MHz variant. This overall ultra-low phase noise translates to a typical phase jitter of 65fs RMS (12kHz to 20MHz) at 156.250MHz.

Applications

Digital video
SONET/SDH/DWDM
Storage area networks

Broadband access
Ethernet, Gigabit Etherneet

Specifications

5mm x 7.5mm SMD package
50.00MHz to 156.25MHz frequency range
Frequency stability options of ±20ppm, ±25ppm, and ±50ppm
Temperature ranges
- -40°C to +85°C operating
- -45°C to +90°C storage
3.3V ±0.3V input voltage
80mA typical input current, 88mA maximum

Differential LVPECL output
- 40/60% maximum symmetry at zero crossing point
- 300ps maximum rise/fall time (20%-80%)
- 200ns maximum disable time
- 200ms maximum enable time
<3ppm aging the 1st year, <1ppm every year thereafter
RoHS compliant

Crystek Corporation CCPD-575 Ultra-Low Phase Noise Clock Oscillators

Applications

Specifications

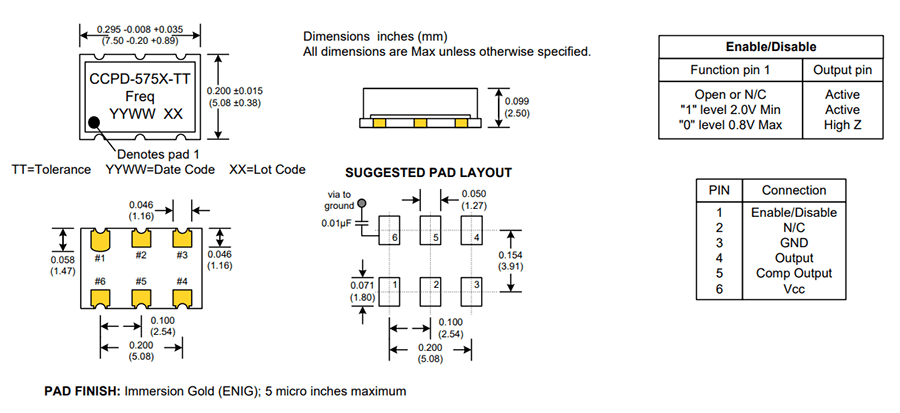

Dimensions & Pad Layout
