Crydom / Sensata DPI Push-In, Dual-Channel Panel-Mount SSRs

Crydom / Sensata DPI Push-In, Dual-Channel Panel-Mount Solid State Relays (SSRs) are hockey puck-style, dual-channel AC output devices with easy-to-wire push-in connections for improved mechanical and thermal design compared to similar solutions. Crydom / Sensata DPI SSRs feature 20A and 40A current ratings at 24V_AC to 600V_AC. These dual-channel SSRs provide two outputs controlled by independent DC control inputs, and the input connector is compatible with various header connectors (not included). This connector has a 5.08mm pitch, allowing for high flexibility when wiring the input connections.

Features

Up to 40A per-channel current rating
4V_DC to 32V_DC control voltage
SCR output for heavy industrial loads
Output push-in connectors
DBC substrate for superior thermal performance

4000V_AC optical isolation
-40°C to +80°C operating temperature range
IP20 touch-safe housing
Fast push-in wiring connection without tools
cURus and TUV approved, CE and RoHS-compliant

Applications

Industrial ovens
Professional cooking equipment
Heat trace controls
Packaging equipment

Plastic injection molding equipment
Lighting control
HVAC and refrigeration

Crydom / Sensata DPI Push-In, Dual-Channel Panel-Mount SSRs

Features

Applications

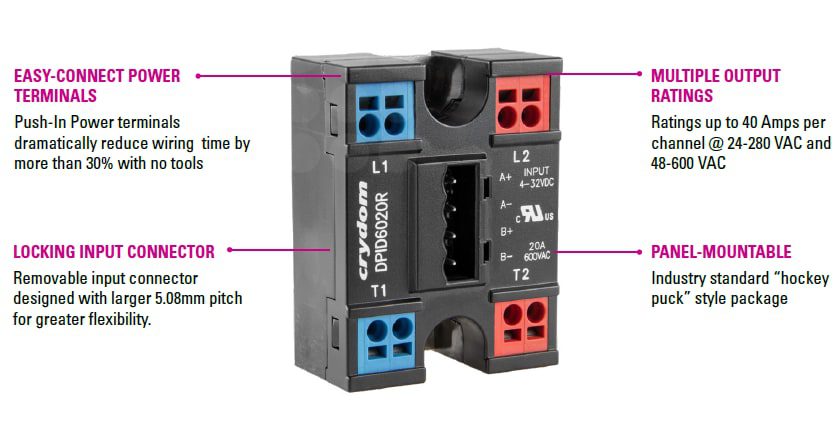

Product Highlights

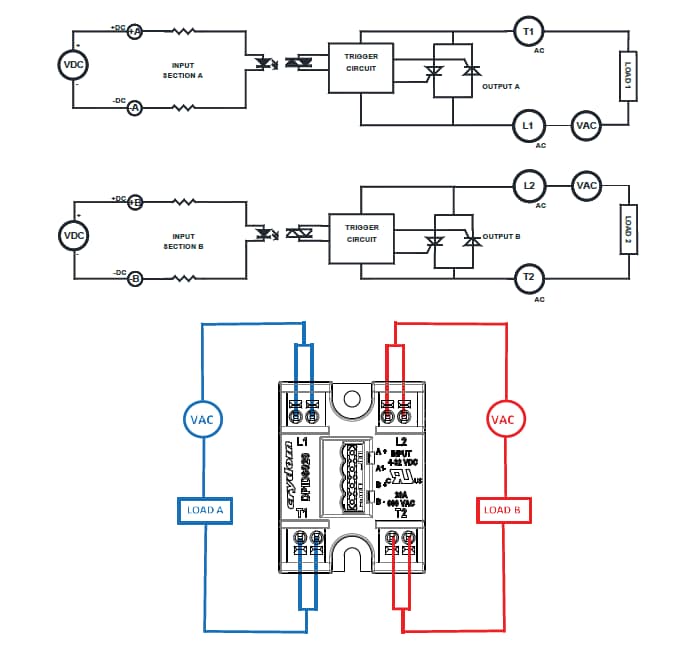

Block and Wiring Diagrams
