Crouzet GNRD Mini DIN-Mounted Solid State Relays

Crouzet GNRD Mini (GNRDM) DIN-Mounted Solid State Relays (SSRs) are DIN-rail DC output devices that are designed to be used in almost any application. The Crouzet GNRDM DIN-Mounted SSRs offer a 4A output current and 2V_DC to 60V_DC output voltage. These SSRs are CE and UKCA recognized and operate over a -40°C to +80°C temperature range.

Features

4A output current
2V_DC to 60V_DC output voltage range
5V_DC to 30V_DC, 90V_AC to 240V_AC control voltages

DIN rail mount SSR
DC switching
CE and UKCA recognized

Specifications

60V_PEAK transient voltage
0.45 minimum power factor (overvoltage and free-wheel diode protection required)

2500V dielectric strength
-40°C to +80°C operating temperature range

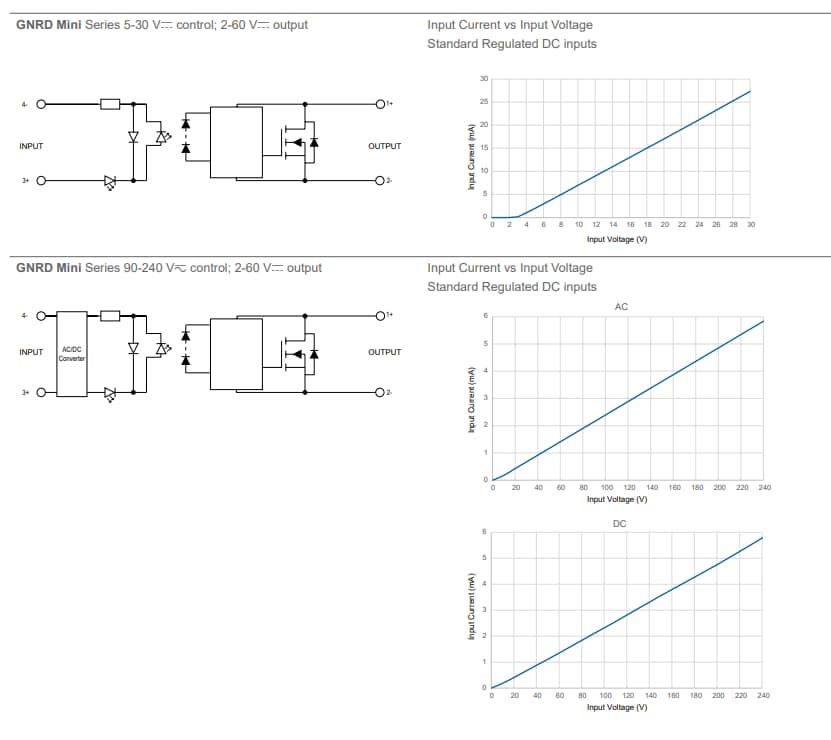

Equivalent Circuit Block

Application Circuit Diagram - Crouzet GNRD Mini DIN-Mounted Solid State Relays
