Cree LED XLamp® XM-L® Color (RGBW) Gen 2 LEDs

Cree LED XLamp® XM-L® Color (RGBW) Gen 2 LEDs are multi-color (Red, Green, Blue, White) LEDs offering a high lumen output and color mixing in a compact 5mm x 5mm package. The XM-L Color Gen 2 LEDs eliminate the space between the LED die, creating a small optical source for excellent optical control and efficient color mixing. Gen 2 also includes a high-intensity version that further reduces the optical source size for even greater levels of optical control. Cree LED XLamp® XM-L Color (RGBW) Gen 2 LEDs are optimized for all high-performance RGBW lighting applications, including color-changing, stage, architectural, and entertainment.

Features

Red, green, blue, and white in a single 5mm x 5mm package
1.75A maximum drive current per LED die
Individually addressable LEDs

Electrically neutral thermal path
RoHS and REACH compliant
UL-recognized component (E349212)

Applications

Stage lighting
Mood lighting

Architectural lighting
Effect and accent lighting

Specifications

RGBW color in one package
Typical forward voltage
- 2.25V per LED die red at 350mA
- 3.3V per LED die green at 350mA
- 3.1V per LED die royal blue and white at 350mA
Dominant wavelength or color temperature
- Red: 620nm to 630nm
- Green: 520nm to 535nm
- Blue: 450nm to 465nm
- Cool white 5700K to 8000K
- Neutral white: 3700K to 4300K

Minimum luminous flux at 350mA
- Red: 45.7lm
- Green: 87.4lm
- Blue: 13.9lm
- White: 80lm to 100lm
111lm/W maximum efficacy at binning conditions
130° viewing angle
150°C maximum junction temperature
8000V (HBM per Mil-Std-883D) maximum ESD withstand voltage
Reflow solderable – JEDEC J-STD-020

Cree LED XLamp® XM-L® Color (RGBW) Gen 2 LEDs

Features

Applications

Specifications

Videos

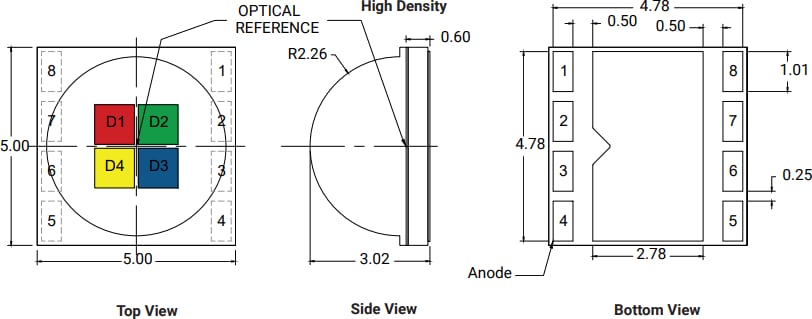

Package Outline (High Density)

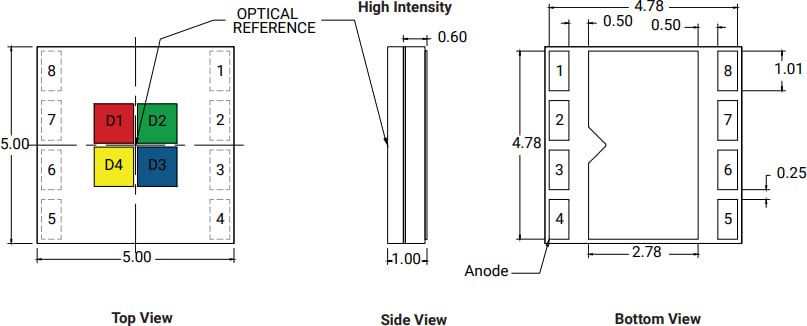

Package Outline (High Intensity)
