Cree LED XLamp® Element G (XE-G) LEDs

Cree LED XLamp® Element G (XE-G) LEDs are for color-mixing lighting applications that require high levels of light output. The LEDs have full control over spectral content and are available in 17 colors. There is also a complete portfolio of white options for unprecedented flexibility to change and optimize product light output properties.

Features

Available in 70, 80, and 90 CRI white, violet, royal blue, blue, PC blue, cyan, PC cyan, green, PC lime, PC mint, amber, PC amber, PC yellow, red‑orange, PC red‑orange, red, PC red, and photo red

3A maximum drive current
Reflow solderable – JEDEC J-STD‑020C compatible
Unlimited floor life at ≤ 30°C/85% RH
UL-recognized component (E349212)

Applications

Indoor directional lighting
Architectural lighting

Entertainment lighting
Aftermarket automotive

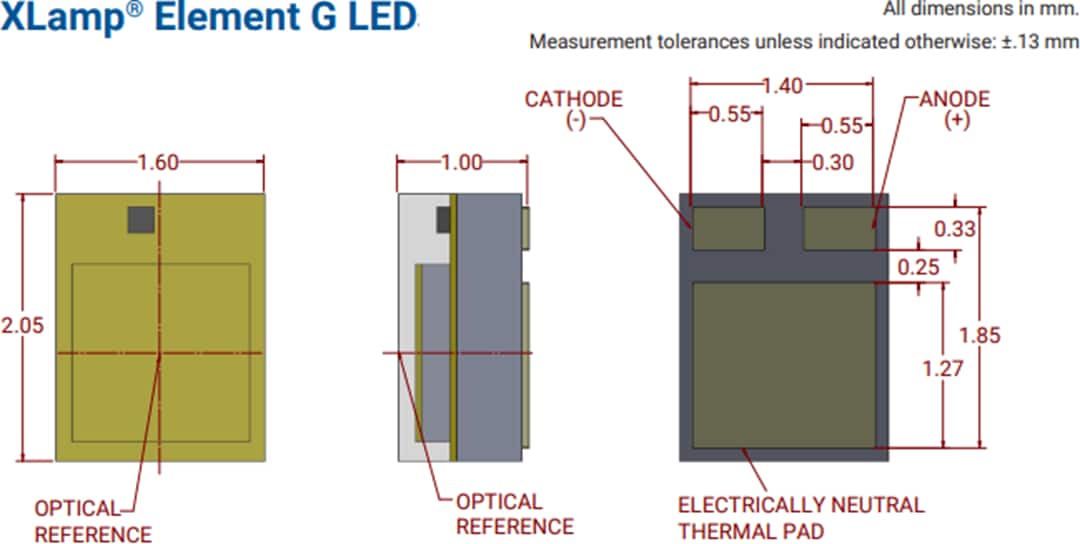

Package Outline

Mechanical Drawing - Cree LED XLamp® Element G (XE-G) LEDs
