Cree LED CLX6E 3-in-1 SMD LED

Cree CLX6E 3-in-1 SMD LED is a tricolor SMT LED featuring an IPX8 water-resistant rating in a PLCC6 package. The CLX6E LED offers a wide viewing angle and high brightness, ideal for outdoor and full-color video signage applications.

The Cree CLX6E 3-in-1 SMD LED has an encapsulation resin that contains UV inhibitors to minimize the effects of long-term exposure to direct sunlight. This enables stable light output over the life of the CLX6E.

The CLX6E is housed in a PLCC6 package with increased package height to ease the manufacturing process.

Features

Dominant wavelength:
- Red (619nm – 624nm)
- Green (520nm – 535nm)
- Blue (460nm – 480nm)
Luminous intensity
- Red (355mcd – 805mcd)
- Green (710mcd – 1400mcd)
- Blue (140mcd – 355mcd)

3.5mm x 3.4mm x 2.8mm Size
Water-resistant (IPX8)
5a Moisture sensitivity level
Lead-free
RoHS compliant

Applications

Architecture lighting
Outdoor full-color video screen

Decorative lighting
Amusement

Cree LED CLX6E 3-in-1 SMD LED

Features

Applications

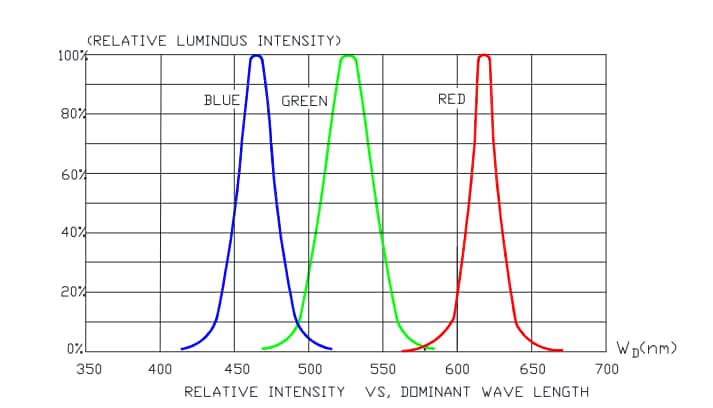

Relative Intensity vs. Dominant Wavelength

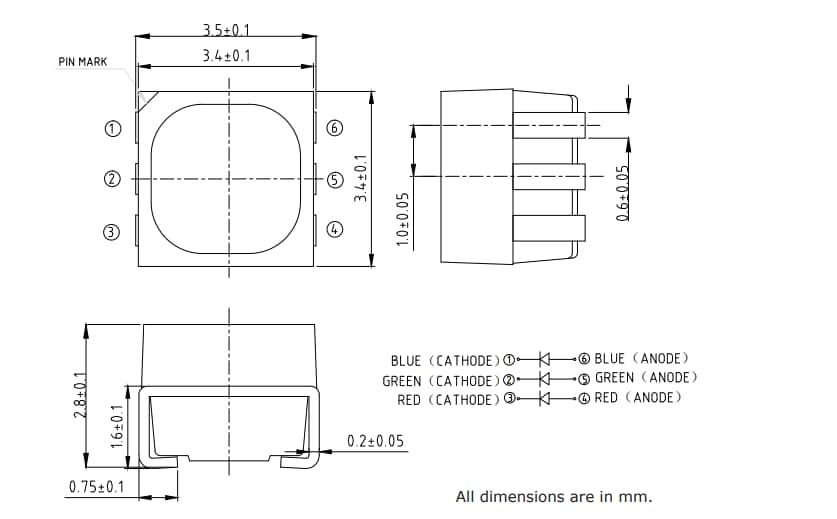

Mechanical Dimensions
