Cree LED CLW6A 4-in-1 SMD LEDs

Cree CLW6A 4-in-1 SMD LEDs are high-performance 4 color SMT LEDs in an industry-standard PLCC8 package. The CLW6A offers high performance, a wide viewing angle, and high brightness ideal for signage applications. The 4-in-1 SMD LEDs are designed for various applications, including architecture lighting, decorative lighting, and amusement.

Features

Dominant wavelength/CCT
- Red (619nm – 624nm)
- Green (520nm – 535nm)
- Blue (460nm – 475nm)
- White (2700K/3000K/4000K/5000K/5700K)
Luminous flux
- Red (2.2lm – 4.8lm)
- Green (4.8lm – 10.7lm)
- Blue (1.3lm – 2.2Im)
- White (3.7lm – 8.2lm)

3.5mm x 3.5mm x 2.8mm Size
5a Moisture sensitivity level
Lead-free
RoHS compliant

Applications

Architecture lighting
Decorative lighting
Amusement

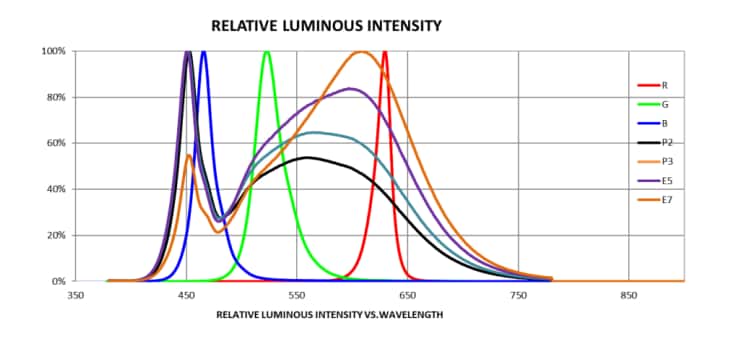

RELATIVE LUMINOUS INTENSITY

Cree LED CLW6A 4-in-1 SMD LEDs

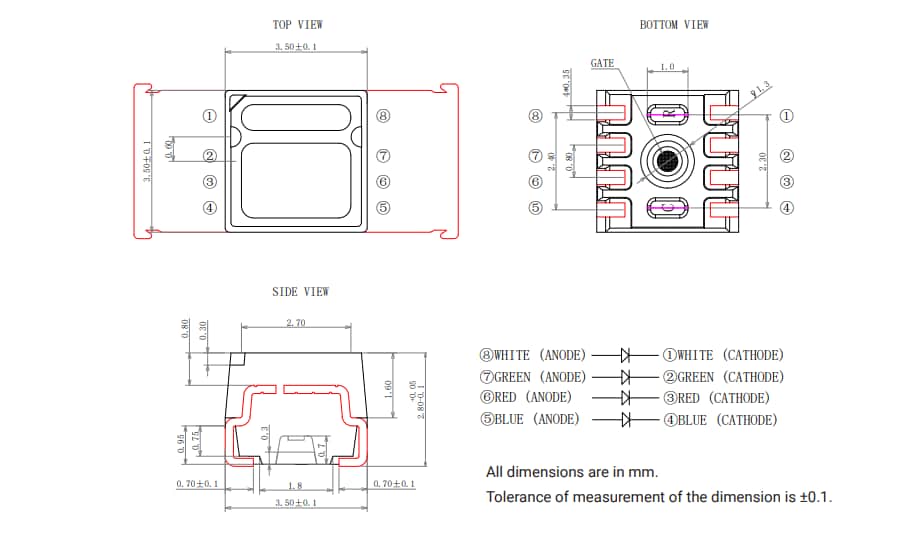

Mechanical Dimensions

Mechanical Drawing - Cree LED CLW6A 4-in-1 SMD LEDs
