Coto Technology RedRock® RR122 TMR Digital Magnetic Sensors

Coto Technology RedRock^® RR122 TMR Magnetic Sensors are digital magnetic sensors ideal for use in medical, industrial, automotive, and consumer applications. RR122-1B12-51x Sensors offer the industry’s lowest average current drain (50nA) for an active magnetic sensor. Coto Technology RedRock RR122 TMR Magnetic Sensors provide omnipolar push-pull response and a wide supply voltage range from 1.7V up to 5.5V.

Due to their ultra-low power, high sensitivity, miniature size, and robustness, these TMR sensors are a popular alternative to both Hall Effect sensors and Reed Switches. The RedRock^® RR122 series incorporates digital magnetic sensors ideal for use in medical, automotive, and consumer applications, based on patented Tunneling Magnetoresistance (TMR) technology with seamless CMOS integration. These tiny sensors from Coto Technology offer high magnetic sensitivity with high hysteresis, EMF resistance, and a small package size, while consuming extremely low power.

Features

Low Power Consumption
- Less than 135nA (RR122-1A2x-51x, RR122-1F2x-511, RR122-2B2x-511)
- Less than 125nA (RR122-2E3x-511)
- Less than 85nA (RR122-2E2x-511)
- Less than 70nA (RR122-1B1x-51x)
- Less than 36µA (RR122-1B9x-51x)
- Less than 1µA (RR122-3CUx-515)
- Less than 1.2µA (RR122-1A5x-511)
- Less than 1.3µA (RR122-1B5x-511)
- Less than 1.9µA (RR122-3C6x-511)
- Less than 11µA (RR122-3C7x-51x)
- Less than 12µA (RR122-1E7x-511)
High Operating Sensitivity
- 9G (RR122-1A2x-51x, RR122-1A5x-511)
- 10G (RR122-3C6x-511, RR122-3C7x-51x, RR122-3CUx-515)
- 15G (RR122-1E7x-511, RR122-2E2x-511, RR122-2E3x-511)
- 30G (RR122-1B1x-51x, RR122-1B5x-511, RR122-1B9x-51x, RR122-2B2x-511)
- 70G (RR122-1F2x-511)

Operating Frequency
- 10,000Hz (RR122-1B9x-51x)
- 2500Hz (RR122-1E73-51x, RR122-3C7x-51x)
- 500Hz (RR122-3C6x-511)
- 250Hz (RR122-1B5x-511, RR122-1A5x-511)
- 100Hz +TURBO (RR122-3CUx-515)
- 20Hz (RR122-2E3x-511)
- 10Hz (RR122-1A2x-51x, RR122-1F2x-511, RR122-2B2x-511, RR122-2E2x-511)
- 2Hz (RR122-1B1x-51x)
Temperature Range
- -40°C to +125°C (RR122-xxx3-51x)
- -40°C to +85°C (RR122-xxx2-51x)
1.7V to 5.5V supply voltage range
Omnipolar, bipolar, unipolar push-pull response
RoHS and REACH compliant
Stable temperature performance
Resistant to mechanical stress
Tiny size

Applications

Door or lid closure detection
Smartphones, tablets, and laptops
Proximity detection
Wake-up microprocessors
Contactless sensing
Portable medical devices
Consumer electronics

Liquid level sensing
Position sensing
Anti-tamper sensing
Speed and rotation sensing
Water, electric, and gas meters
Motor controllers

Coto Technology RedRock® RR122 TMR Digital Magnetic Sensors

Features

Applications

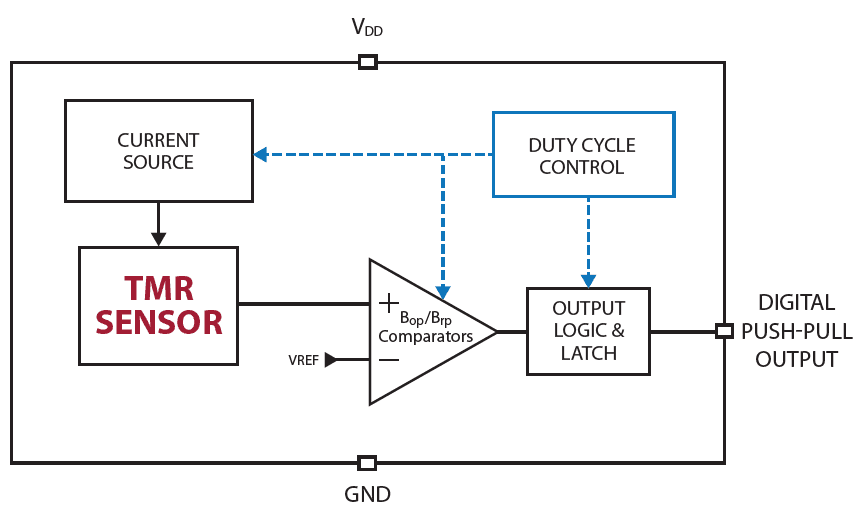

Block Diagram (Accurate Depiction As-Is)

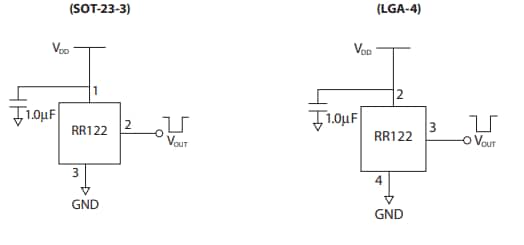

Application Circuits (Accurate Depiction As-Is)

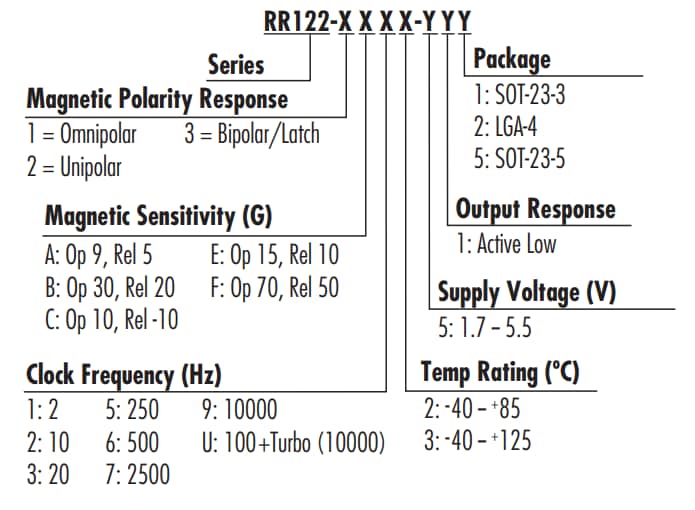

Ordering Information

Videos
