Cosel UMA Medical Power Supplies

Cosel UMA Medical Power Supplies are designed for medical electric equipment and feature a universal input range of 85V_AC to 264V_AC. These medical power supplies are suitable for body floating (BF) applications and comply with 2MOPP (IN/OUT) and 1MOPP (OUT/FG) safety requirements. The UMA medical power supplies feature 4kV isolation, low leakage current, and an economical design. These Cosel power supplies comply with CISPR11 class B, CISPR32 class B, EN55011-B, EN55032-B, FCC Part15 class B, and FCC Part18 class B. The UMA medical power supplies are available in five output voltages of 5V_DC, 12V_DC, 15V_DC, 24V_DC, and 48V_DC.

Features

Designed for medical electric equipment
Medical isolation grade 2MOPP
4kV isolation
Suitable for BF applications
Low leakage current
2″ x 3″ standard footprint
Economical design
Safety agency approvals
- ANSI/AAMI ES60601-1
- EN60601-1 3rd
- C-UL (CAN/CSA-C22.2 No.60601-1)
- UL62368-1
- EN62368-1
- C-UL (CAN/CSA-C22.2 No.62368-1)
- Complies with EN60335

CE marking
- Low voltage directive
- RoHS directive
UKCA marking
- Electrical equipment safety regulations
- RoHS regulations
EMI
- Complies with:
  - CISPR11 classB
  - CISPR32 classB
  - EN55011-B
  - EN55032-B
  - FCC Part15 classB
  - FCC Part18 classB

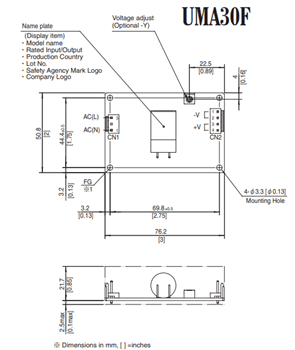

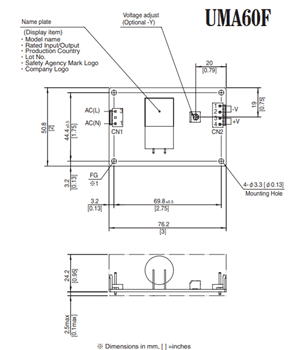

Dimensional Diagrams

Mechanical Drawing - Cosel UMA Medical Power Supplies
