Cosel TECS/TEPS Series 45W/65W Power Supplies

Cosel TECS/TEPS Series 45W/65W Power Supplies are the new generation of highly compact and high-efficiency power supplies for industrial applications. These power supplies make use of advanced technologies like Wide Band Gap (WBG) Gallium Nitride (GaN) semiconductors, high-frequency planar transformers, and enhanced flyback topology for high efficiency. The 12V and 24V output versions are able to deliver 140% power to sustain peak loads with an outstanding efficiency of up to 93.5%. The TECS/TEPS power supplies benefit from GaN performances in high-frequency switching to deliver 45W and 65W in 1″ x 2.3″ (25.4mm x 58.4mm) footprints. These AC/DC power supplies provide flexibility for TEPS devices, with pins for PCB mounting and TECS devices using crimp-style JST connectors. Typical applications include smart office equipment, security equipment, payment terminals, office automation equipment, machine tools, industrial printers, and display equipment.

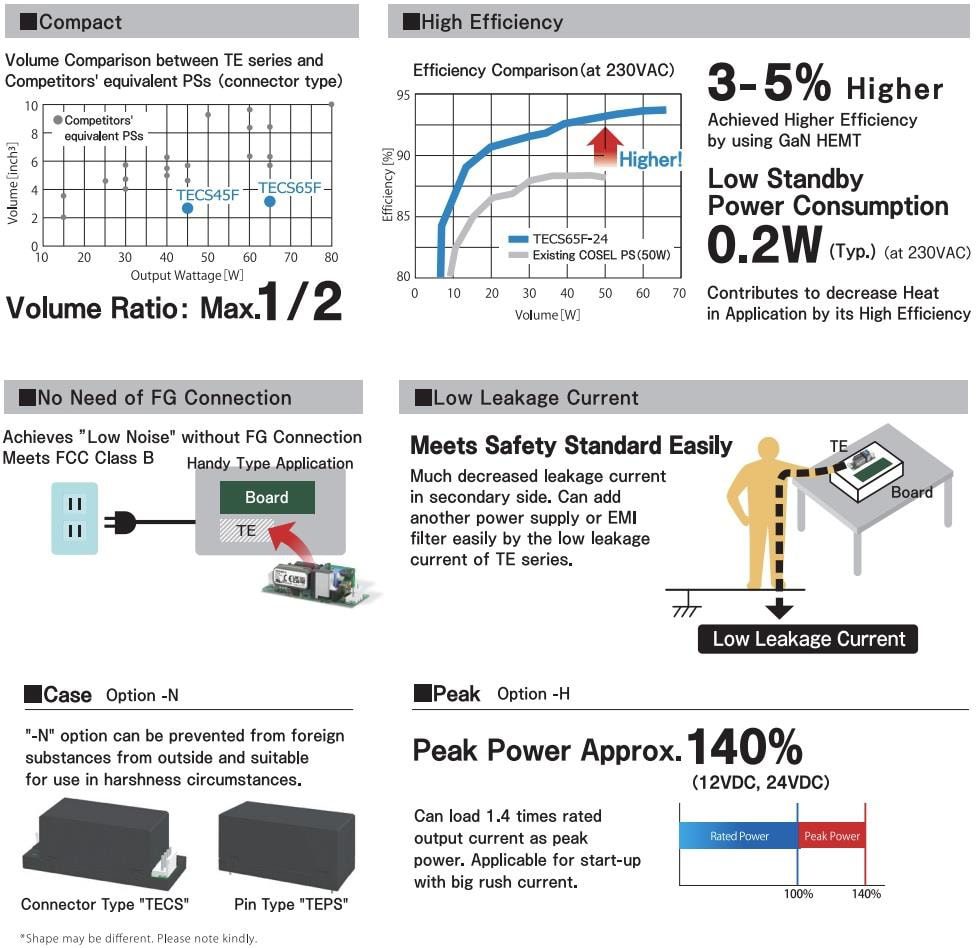

Features

Low-profile
Wide Band Gap (WBG) Gallium Nitride (GaN) power stage and planar magnetics
1″ x 2.3″ high power density design (TEP45F, 65F)
High efficiency up to 93.5%
Small and compact PCB construction
45W and 65W interoperable footprints
Two versions with pins or connectors and dust protective case

85V_AC to 264V_AC universal input range
Harmonic attenuator (complies with IEC61000-3-2)
140% peak output current on 12V and 24V models
Built-in inrush current, overcurrent, and overvoltage protection circuits
Class Ⅱ: No FG connection is necessary
Comply with the RoHS, low voltage directives, and carry the CE mark and UKCA

Applications

Smart office equipment
Machine tools
Industrial printers
Display equipment
Office automation equipment

Ticketing machines
Security equipment
Payment terminals
Measurement and analysis equipment
