Cosel LHA10F / LHA15F Open-Frame AC/DC Power Supplies

Cosel LHA10F / LHA15F Open-Frame AC/DC Power Supplies feature high isolation voltage and low leakage current, making them an ideal solution for industrial applications. These 10W and 15W units offer a 15% smaller size and a lower leakage current than conventional products on the market. Both series are engineered for use in demanding applications where space is often limited. The LHA10F units measure 50mm x 21.5mm x 62.5mm (1.97″ x 0.85″ x 2.46″), while the LHA15F models measure 50mm x 21.5mm x 73.5mm (1.97″ x 0.85″ x 2.89″). Cosel LHA10F / LHA15F Open-Frame AC/DC Power Supplies are offered in a range of output voltages and include built-in inrush current, overcurrent, and overvoltage protection circuits.

Features

Small, compact PCB construction
15% smaller size than conventional products
High isolation voltage and low leakage current
Ideal for industrial applications
Low-profile, open-frame type
High efficiency
Low noise
Harmonic attenuator (complies with IEC61000-3-2)
Universal input (85V_AC to 264V_AC)
Lower leakage current than conventional products

Built-in inrush current, overcurrent, and overvoltage protection circuits
-10°C to +70°C operating temperature range
Potentiometer option available
EN 62477-1 OVC III (overvoltage category) safety approval
UL/EN62368-1 certified
CE marking
Low voltage directive
RoHS compliant
5-year warranty

Specifications

LHA10F
- 10W output wattage
- 50mm x 21.5mm x 62.5mm (1.97″ x 0.85″ x 2.46″) dimensions
- DC output
  - 3.3V at 2A
  - 5V at 2A
  - 12V at 0.9A
  - 15V at 0.7A
  - 24V at 0.5A

LHA15F
- 15W output wattage
- 50mm x 21.5mm x 73.5mm (1.97″ x 0.85″ x 2.89″) dimensions
- DC output
  - 3.3V at 3A
  - 5V at 3A
  - 12V at 1.3A
  - 15V at 1A
  - 24V at 0.7A

Cosel LHA10F / LHA15F Open-Frame AC/DC Power Supplies

Features

Specifications

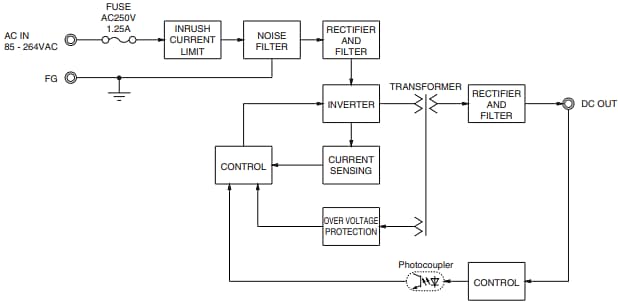

Block Diagram
