CONXALL Multi-Con-X Extra Large Backshell

Conaxall Multi-Con-X Extra Large Backshells are industry-standard sealed circular plastic connectors. These large backshells support cable diameters up to 0.57″ (14.5mm), and feature screw-down cable clamps for strain relief. Compatibility includes large diameters with up to 12 #20 contacts, 6 #16 contacts, or 4 #12 contacts, while the included adapter enables compatibility with Mega-Con-X connectors. Switchcraft Conxall Multi-Con-X Extra Large Backshells are constructed out of black nylon, with black elastomer grommets, with a black aluminum adapter.

Features

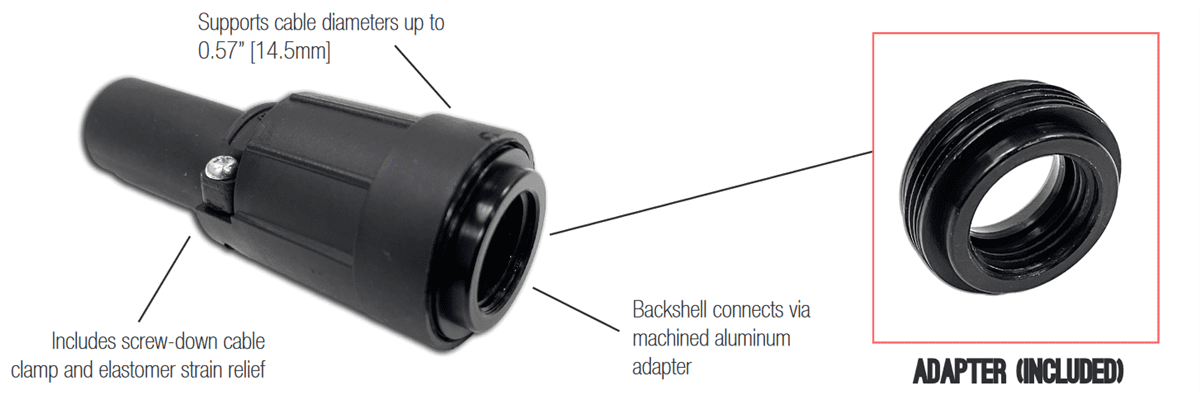

Supports cables up to 0.57″ (14.5mm)
Includes screw down clamp and elastomer strain relief
Backshell connects via machined aluminum adapter
Made in the USA

Contacts:
- Up to 12 #20 contacts
- Up to 6 #16 contacts
- Up to 4 #12 contacts

Specifications

Black nylon backshell
Black elastomer grommet
Black aluminum adapter

Black nylon strap
#4-24 x 1/2, HI/LO self tapping, stainless steel screws
