Comchip Technology CDBKA20120L-HF Low VF Schottky Rectifier

Comchip Technology CDBKA20120L-HF Low VF Schottky Rectifier is designed with soft and fast switching capability. This rectifier offers ultra-low forward voltage drop and high-temperature stability. The CDBKA20120L-HF rectifier features 120V maximum repetitive peak reverse voltage and 20A maximum average forward rectified current. This Schottky rectifier diode incorporates super-barrier rectifier technology, making it ideal for high-power, low-loss, and fast-switching applications. This rectifier is RoHS compliant and halogen-free device that comes in TO-262 molded plastic case.

Features

Ultra-low forward voltage drop
High-temperature stability
Patented super barrier rectifier technology
Soft and fast switching capability

RoHS compliant
Halogen-free
TO-262 molded plastic case

Specifications

120V maximum repetitive peak reverse voltage (V_RRM)
0.80V maximum instantaneous forward voltage per diode (V_F)
84V maximum RMS voltage (V_RMS)
20A maximum average forward rectified current (per device) (I_F(AV))

50μA maximum reverse current per diode (I_R)
10°C/W thermal resistance per diode (R_θJC)
-55°C to 150°C operating junction temperature range (T_J)

Comchip Technology CDBKA20120L-HF Low VF Schottky Rectifier

Features

Specifications

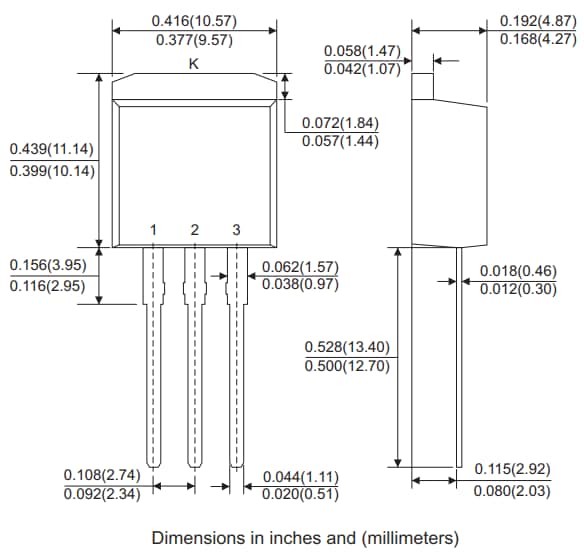

Dimensions

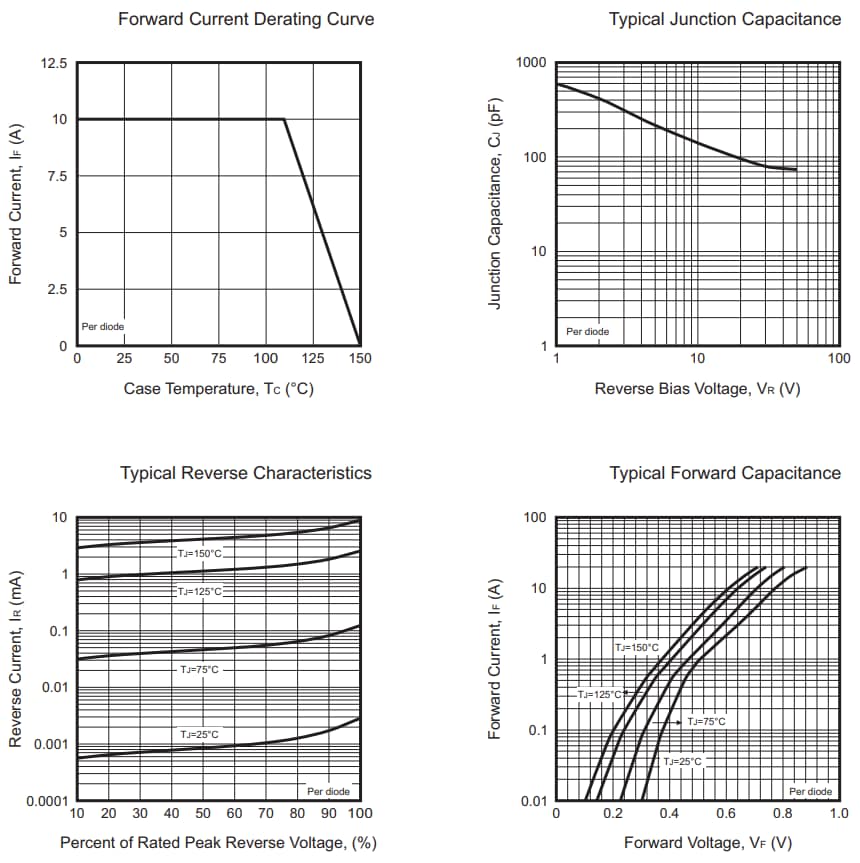

Performance Graphs
