Comchip Technology BAS416-HF Fast Switching Diode

Comchip Technology BAS416-HF Fast Switching Diode has a high switching speed, small size, long life, and high-reliability characteristics. This diode features 85V repetitive peak reverse voltage, 250mW power dissipation, and 200mA average forward current. The BAS416 diode offers a low leakage current and a maximum junction temperature of 150°C. This diode is a RoHS-compliant and halogen-free device that comes in a small SOD-323 plastic package.

Features

Fast switching speed
85V repetitive peak reverse voltage (V_RRM)
250mW power dissipation (P_D)
200mA average forward current (I_FAV)
Low leakage current
150°C maximum junction temperature (T_J)

4pF capacitance (C) @ (V_R=0V and f=1MHz)
3μs reverse recovery time @ (I_F=10mA, I_R=10mA, I_rr=0.1 x I_R, and R_L=100Ω)
Diode polarity – cathode line denotes the cathode end
Small SOD-323 plastic package

Comchip Technology BAS416-HF Fast Switching Diode

Features

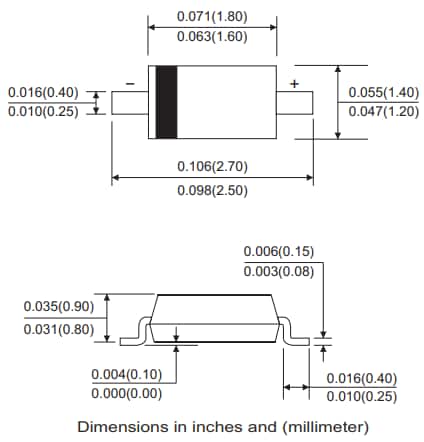

Dimensions
