C&K Switches TLSM 6mm Top Mount Endurance SMT Tact Switch

C&K TLSM 6mm Top Mount Endurance SMT Tact Switches are compact momentary tactile switches with soft actuators. They feature a long operating life of 3 million cycles, and an IP54 rating. C&K TLSM Switches feature SMT termination, momentary action, and SPDT contact arrangement.

Features

Momentary action
Soft actuator
Long life cycle

Top mount
SPDT
IP54 certification

Applications

Elevator buttons & alarms
Robotic vacuums

Door handles
Mowers

Specifications

3 million cycle operating life
0.3 ± 0.2mm travel distance
6.0mm length x 6.1mm width x 3.45mm height
SPST, momentary
-40°C to +90°C operating and storage temperature range

Surface mount termination
1V_DC to 16V_DC voltage rating
1μA to 50mA current rating
100MΩ minimum insulation resistance
250V_AC dielectric voltage

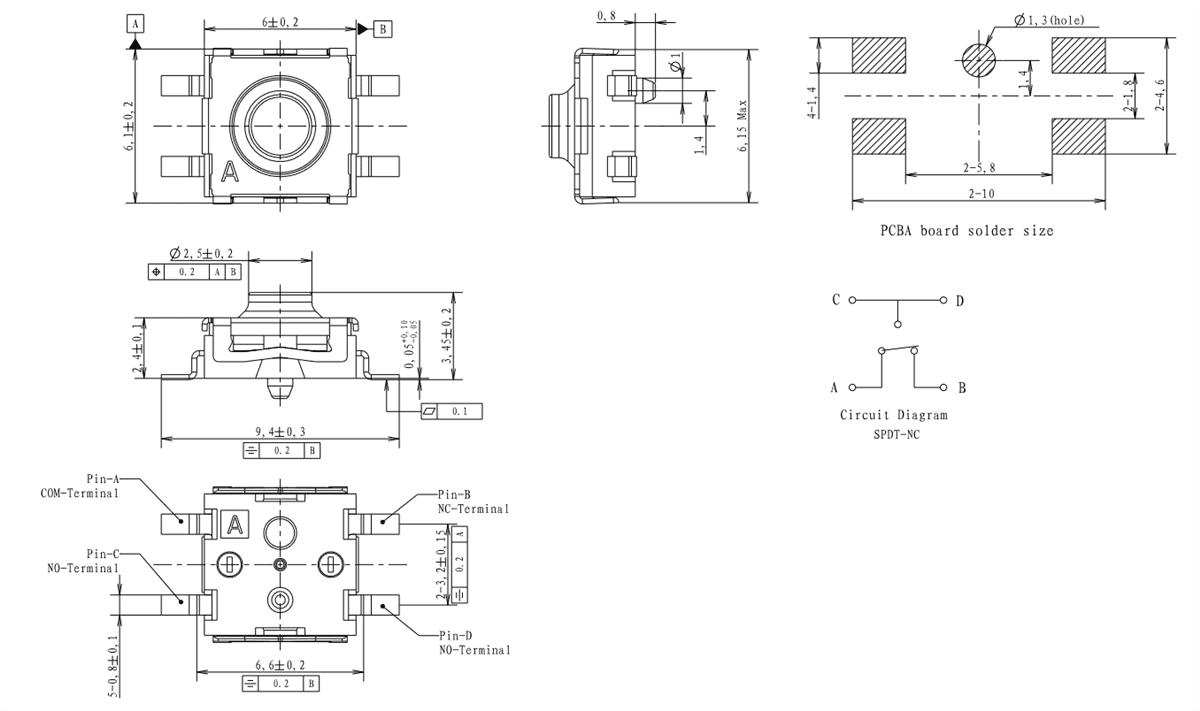

Switch Dimensions
