C&K Switches PTS526 Tactile Switches

C&K Switches PTS526 Tactile Switches are small, low profile, surface mount tactile switches. These 5.2mm x 5.2mm switches feature various configurations with 4 different heights, and 3 different actuation forces. C&K Switches PTS526 Tactile Switches feature life cycles up to 1000k, making them suitable for a variety of general usage applications such as high-end consumer, IoT, and medical devices. Optional ground pin configuration offers additional protection from ESD.

Features

5.2mm x 5.2mm footprint
0.8mm, 1.5mm, 1.7mm, and 2.0mm height configurations
160gf, 250gf, and 320gf

Up to 1000k life cycles
Ground pin configuration available

Applications

Home automation
IoT
Consumer controls

Cleaning robots
Medical devices
High-end consumer digital appliances

Specifications

Momentary action
SPST N.O.

J and G type SMT terminals
0.25mm ±0.1mm travel distance

C&K Switches PTS526 Tactile Switches

Features

Applications

Specifications

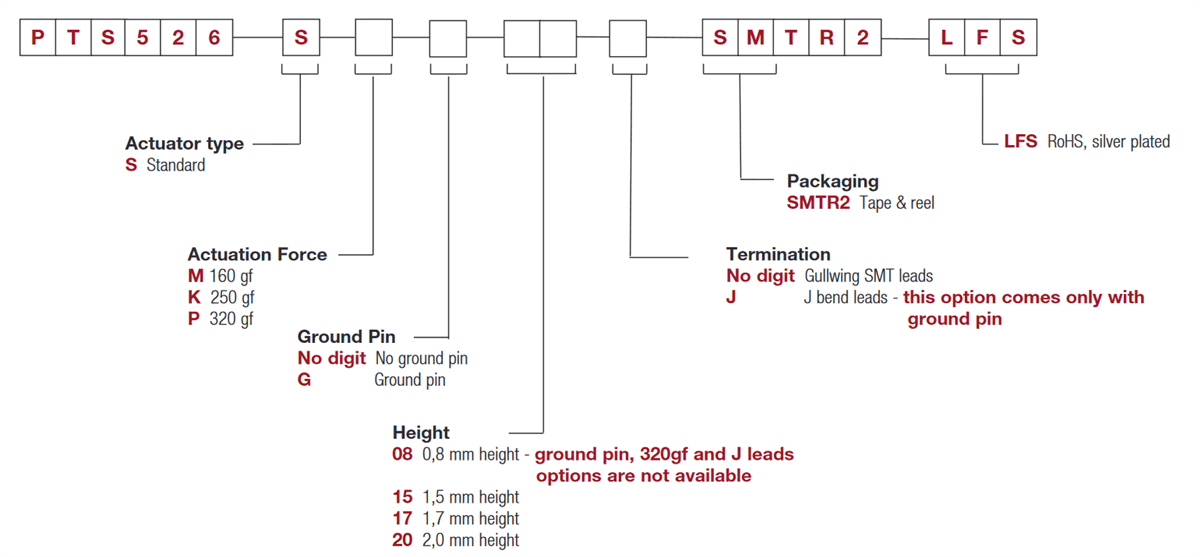

Part Number Code
