CITEL DS240S DIN Rail DC Power Surge Suppressors

CITEL DS240S DIN Rail DC Power Surge Suppressors are designed to be installed inside of an enclosure and in very close proximity to the sensitive equipment that is being protected. These devices are IEC Type 2 DC surge protectors ranging from 95V_DC to 350V_DC and are wired in series or parallel with the load. The DS240S devices also offer MOV technology with common-mode protection.

Features

MOV technology
Common mode protection
Symmetrical 35mm DIN rail mounting
Disconnection via fuse-link fail-safe behavior

Visual indicator and remote contacts
IP20 protection, NEMA 2
IEC 61643-11, EN 61643-11, and UL1449 ed.4 compliant
RoHS compliant

Specifications

20A maximum load current
Discharge current
- 40kA maximum discharge current
- 80kA total maximum
95V to 350V power rating range
-40°C to +85°C operating temperature range

Thermoplastic UL94V-0 housing material
0.30lbs (0.111kg) in weight
Screw terminal network connection, 1.5mm² to 10mm² active wires and 2.5mm² to 25mm² ground
2W+G network configuration

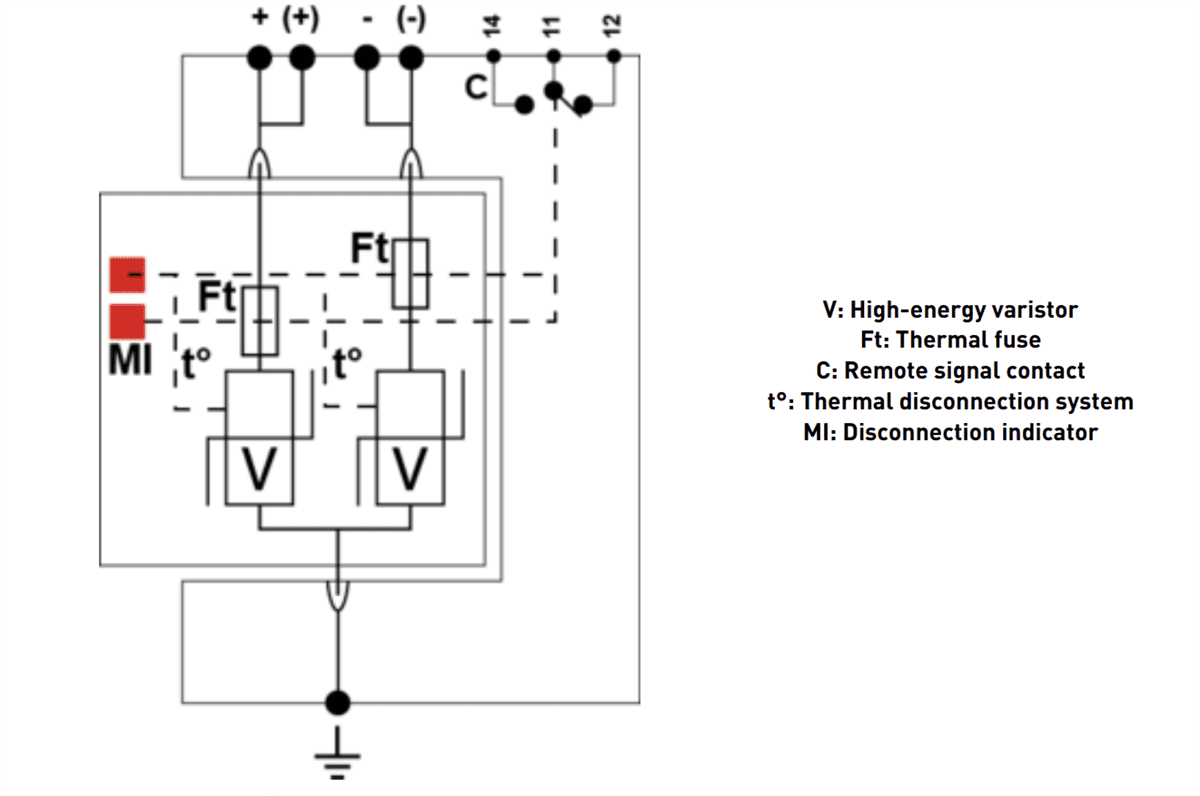

Schematic

Schematic - CITEL DS240S DIN Rail DC Power Surge Suppressors
