CITEL DS230S DIN Rail DC Power Surge Suppressors

CITEL DS230S DIN Rail DC Power Surge Suppressors are designed to be installed inside of an enclosure and in very close proximity to the sensitive equipment that is being protected. These devices are IEC Type 2 DC surge protectors available in either 48V_DC or 75V_DC and are wired in series or parallel with the load. The DS230S devices also offer MOV technology with common-mode protection.

Features

MOV technology
Common mode protection
Symmetrical 35mm DIN rail mounting
Disconnection via fuse-link fail-safe behavior
Visual indicator and remote contacts

IP20 protection, NEMA 2
IEC 61643-11, EN 61643-11, UL1449 ed.4 complinant
RoHS compliant

Specifications

SPD Type 2
20A maximum load current
Discharge current
- 30kA maximum discharge current
- 60kA total maximum
48V or 75V power rating options
-30°C to +85°C operating temperature range

Thermoplastic UL94V-0 housing material
0.30lbs (0.111kg) in weight
Screw terminal network connection, 1.5mm² to 10mm² active wires and 2.5mm² to 25mm² ground
2W+G network configuration

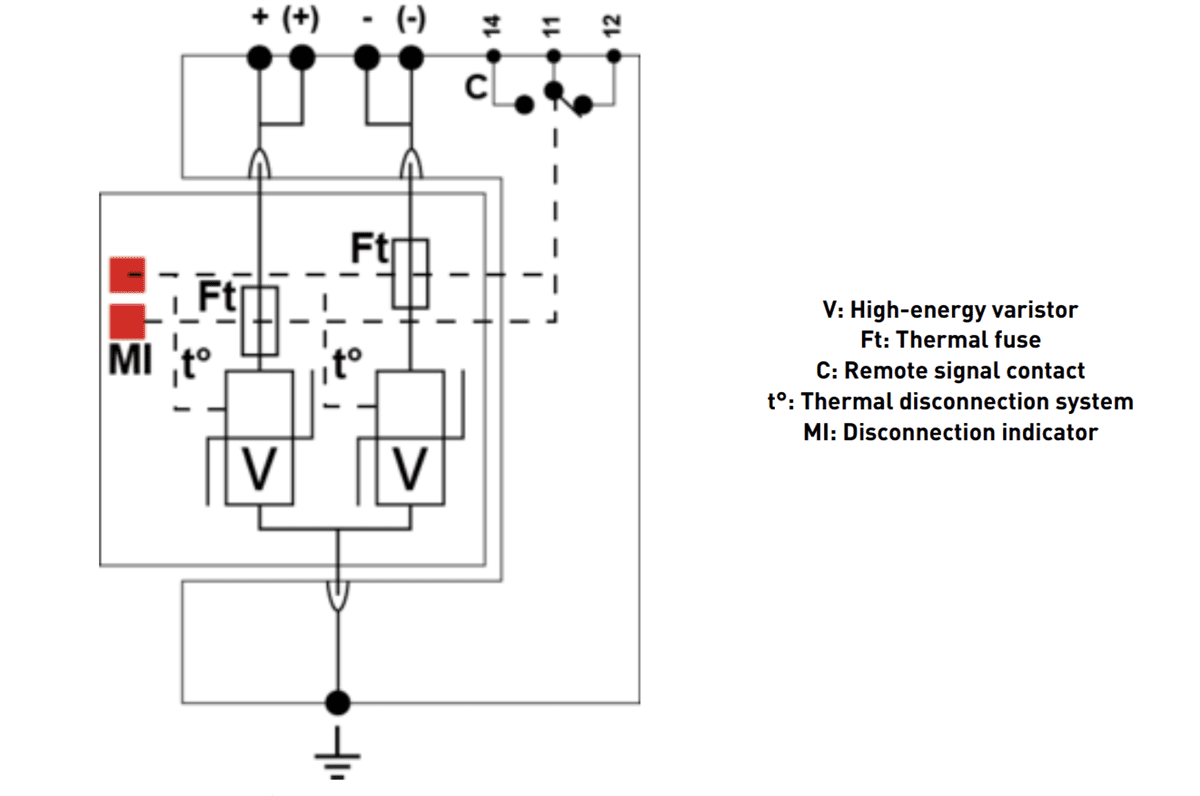

Schematic

Schematic - CITEL DS230S DIN Rail DC Power Surge Suppressors
