Cincon TR220M 220W Single-Output Medical Switch Adapters

Cincon TR220M 220W Single-Output Medical Switch Adapters are highly efficient (up to 94%), reliable, compact, high power density, AC-DC adapters. The TR220M devices are fully protected against short circuit and over-voltage conditions within a universal 80V_AC to 264V_AC input range. Operating within a -30°C to +70°C temperature range, the Medical Switch Adapters are available as Class I (TR220MA) or Class II (TR220MB) devices with cable lengths ranging from 950mm to 1800mm.

Features

Universal 80V_AC to 264V_AC input range
High efficiency up to 94%
Class I (TR220MA), Class II (TR220MB)
IEC/EN/UL 60601-1 2 MOPP approved
IEC/EN 60601-1-11 (TR220MB) approved

EN55011 and CISPR/FCC Class B approved
IP22 rated
Continuous short circuit protection
Overvoltage protections
Meets CoC Tier 2 and DOE Level VI

Specifications

80V_AC to 264V_AC input voltage range
47Hz to 63Hz input frequency range
2.5A maximum input current
4000V_AC minimum input/output isolation for 1 minute
12V to 56V output voltage range
3.93A to 16.67A output current range
120mV or 200mV ripple and noise
±2% voltage accuracy
±1% line regulation
±2% to ±4% load regulation
91% to 94% efficiency
100kHz typical switching frequency
100MΩ minimum isolation resistance

5000m maximum operating altitude
Leakage current
- 300µA maximum for Earth
- 100µA maximum for touch
Cable lengths
- 950mm with ferrite core (471 code)
- 1220mm with ferrite core (12 code)
- 1800mm with DC jack (13 code)
Temperature ranges
- -30°C to +70°C operating
- -40°C to +85°C storage
93% relative humidity, non-condensing
180mm x 75mm x 44.5mm (7.087″ x 2.953″ x 1.752″) in dimension

Cincon TR220M 220W Single-Output Medical Switch Adapters

Features

Specifications

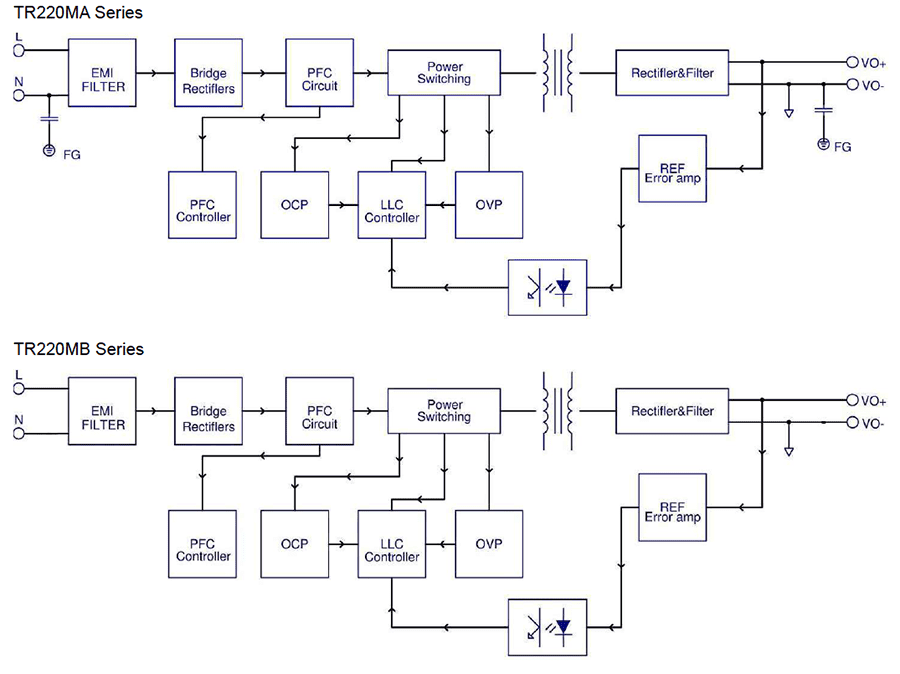

Block Diagrams
