Cincon EC5SBW-C(D)MF 4:1 Input Isolated DC-DC Converters

Cincon EC5SBW-CMF and EC5SBW-DMF 4:1 Input Isolated DC-DC Converters feature a 30W output power rating and a wide 4:1 input voltage range. The converters provide a high 90% efficiency, which allows operation between -40°C and +105°C. The EC5SBW-CMF and EC5SBW-DMF series offer a very low no-load power consumption, which is ideal for energy-critical systems. The Cincon EC5SBW-CMF and EC5SBW-DMF 4:1 Input Isolated DC-DC Converters are fully protected against overtemperature (OTP), output over-current (OCP), output over-voltage (OVP), and under voltage lock-out (UVLO). The converters are ideal for distributed power architectures, telecommunications, battery-operated equipment, mobile equipment, and industrial applications.

Features

90% max efficiency
Fixed switching frequency
Regulated outputs
Remote on/off
Low no-load power consumption
Fully protected (OTP/OCP/OVP/UVLO)
1500V_DC I/O isolation

No tantalum capacitor inside
Built-in EMI filter
Chassis-mount
DIN-rail mount
-40°C to +105°C operating temperature range
UL 62368-1 approval for DC modules
Safety meets IEC/EN/UL 62368-1

Applications

Distributed power architectures
Telecommunications
Battery-operated equipment

Industrial equipment
Mobile equipment

Specifications

10V_DC to 74V_DC input voltage range
3.3V_DC to 15V_DC output voltage range
0mA to 7500mA output current range

8mA to 10mA input current (no load)
586mA to 1420mA input current (full load)
1000μF to 7500μF max capacitor load range

Mechanical Drawings

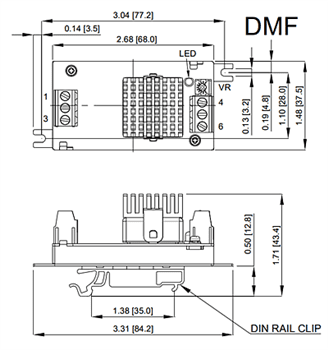

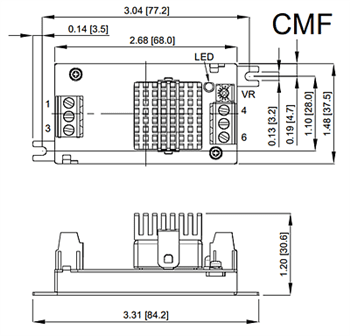

Mechanical Drawing - Cincon EC5SBW-C(D)MF 4:1 Input Isolated DC-DC Converters

Cincon EC5SBW-C(D)MF 4:1 Input Isolated DC-DC Converters

Features

Applications

Specifications

Mechanical Drawings
