Cincon CFM81S 80W Open-Frame AC-DC Power Modules

Cincon CFM81S 80W Open-Frame AC-DC Power Modules are open-frame, switching AC-DC power modules with a 90V_AC to 264V_AC universal input range. These Cincon modules are highly efficient, reliable, and compact with high power density and a single output. CFM81S modules are fully protected against short circuits and over-voltage conditions. Cincon’s automated manufacturing methods and extensive testing and qualification program ensure that CFM81S Power Modules are highly reliable.

Features

90V_AC to 264V_AC universal input range
Continuous short circuit protection
91% high efficiency
<0.3W no-load power
50.8mm x 76.2mm size

Peak load (2x rated current)
Meets EN60335-1
Class I and Class II
Approved IEC/EN/UL 62368-1
Meets EN55032 Class B and CISPR/FCC Class B

Specifications

Voltage adjusted range
- 11.4V to 12.6V (CFM81S120)
- 14.25V to 15.75V (CFM81S150)
- 22.8V to 25.2V (CFM81S240)
- 45.6V to 50.4V (CFM81S480)

12V, 15V, 24V, or 48V output voltages
Up to 6.7A output current
±1% voltage accuracy
1% ripple and noise

Cincon CFM81S 80W Open-Frame AC-DC Power Modules

Features

Specifications

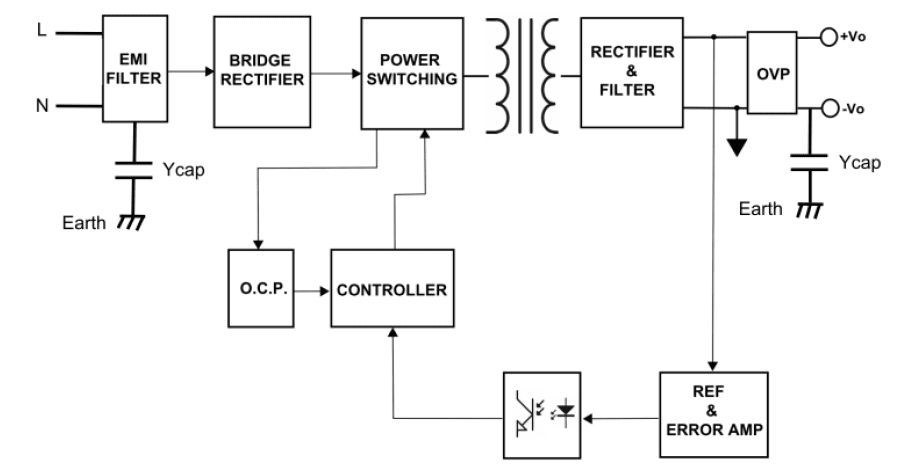

Block Diagram
