Cincon CFM70S 70W Open Frame AC/DC Modules

Cincon CFM70S 70W Open Frame AC/DC Modules offer a 90V_AC to 264V_AC input range, 5V to 48V output voltage, and up to 91% efficiency. CFM70S modules feature a 2″ x 3″ open-frame and compact design, multiple, high-efficiency output options, and IEC/EN/UL 62368-1 approval. Cincon CFM70S 70W Open Frame AC/DC Modules provide overvoltage and continuous short-circuit protection with an operating altitude of 5000m.

Features

90V_AC to 264V_AC input range
Up to 91% efficiency
2″ x 3″ open-frame compact size
Class I and Class II
<0.15W no-load input power
Approval IEC/EN/UL 62368-1

Meets IEC/EN 60335-1
Approval EN 55032 Class B and CISPR/FCC Class B
5000m operating altitude
Continuous short-circuit protection
Overvoltage protection

Cincon CFM70S 70W Open Frame AC/DC Modules

Features

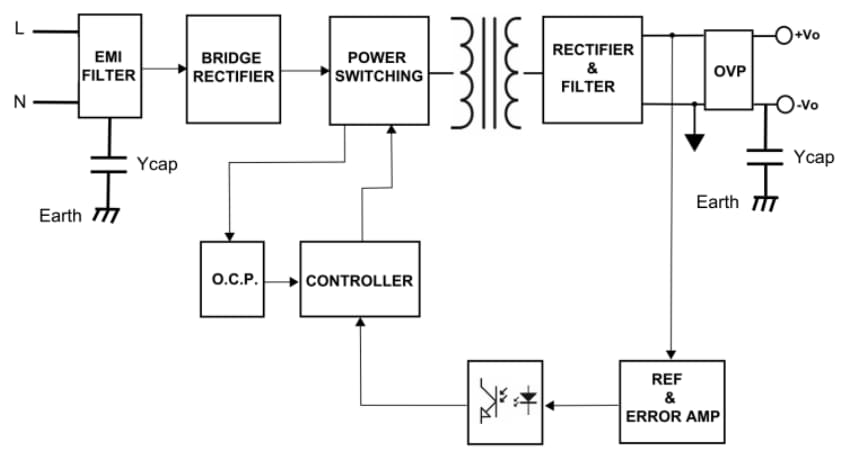

Block Diagram
