Cincon CFM260S Series AC-DC Power Supplies with PFC

Cincon CFM260S Series AC-DC Power Supplies with PFC are highly efficient, reliable, and compact with high power density and single output AC/DC power modules. These power modules are fully protected against short circuits and over-voltage conditions. The CFM260S series AC-DC power supplies offer a high 93.5% efficiency and can operate up to an altitude of 5000m. The CFM260S power supplies operate at 85V to 264V supply voltage range and -30°C to +80°C temperature range.

Features

Compact size
<0.2W no-load power consumption
5000m operating altitude
High 93.5% efficiency (typical)
12V fan output
Continuous short-circuit protection
Over-temperature protection

220W with natural convection
260W with fan-cooled
Meets Class I
Meets EN550032 (Class B)
Meets IEC/EN 60335-1
IEC/EN/UL 62368-1 approval

Specifications

85V to 264V supply voltage range
-30°C to +80°C operating temperature range
-40°C to +85°C storage temperature range

47Hz to 63Hz input frequency
3kV_ACisolation voltage

Cincon CFM260S Series AC-DC Power Supplies with PFC

Features

Specifications

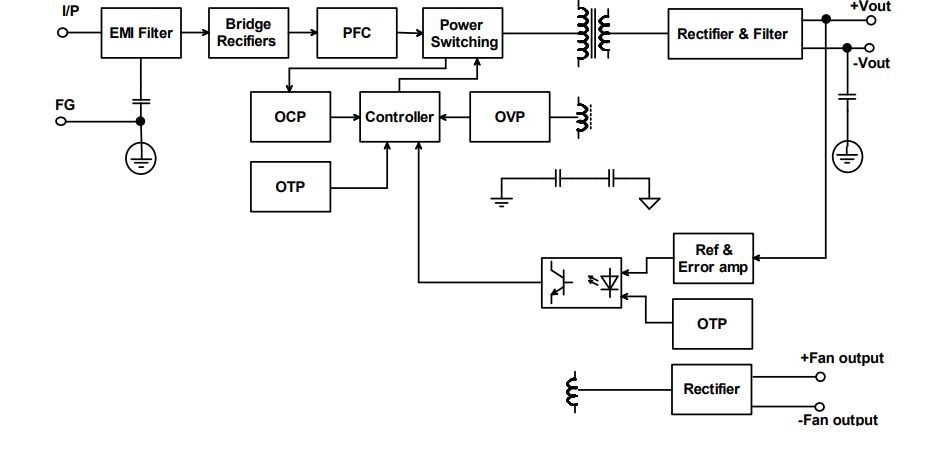

Electrical Block Diagram

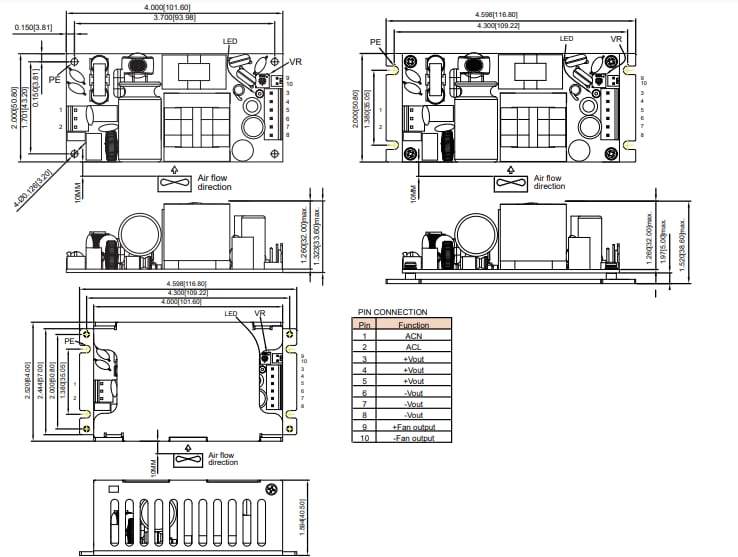

Mechanical Dimension
