Cincon CFM202S 200W Open-Frame AC-DC Modules

Cincon CFM202S 200W Open-Frame AC-DC Modules offer a 12V to 56V output voltage range, 90V_AC to 264V_AC input range, and up to 94% efficiency rating. The CFM202S series features a 2″ x 4″ compact size and multiple protections, including continuous short circuit, overvoltage, and overtemperature. Cincon CFM202S 200W Open Frame AC-DC Modules meet IEC/EN/UL 62368-1 and IEC/EN 60335-1 approval safety standards.

Specifications

200W power rating with fan-cooled
90V_AC to 264V_AC universal input range
Up to 94% efficiency
2″ x 4″ compact size
150W with natural convection (CFM202SxB)
180W with natural convection (CFM202SxC)
<150mW no-load input power consumption

5000-meter operating altitude
Continuous short circuit protection
Overvoltage protection
Overtemperature protection
Active PFC function
Approval safety IEC/EN/UL 62368-1
Approval safety IEC/EN 60335-1

Cincon CFM202S 200W Open-Frame AC-DC Modules

Specifications

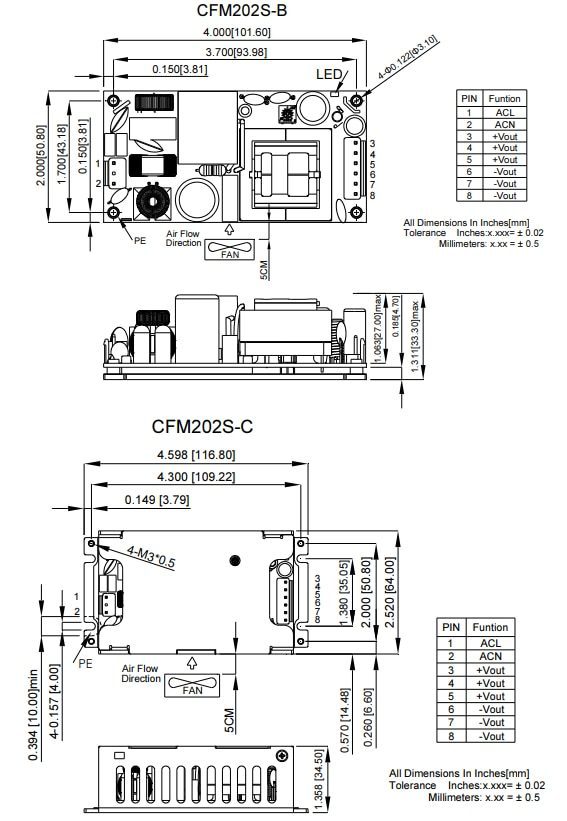

Mechanical Specification
