Cincon CFM130S 130W Open-Frame AC-DC Power Modules

Cincon CFM130S 130W Open-Frame AC-DC Power Modules are open-frame AC-DC modules with an active power factor correction (PFC) function. Cincon CFM130S offers an 80V_AC to 264V_AC universal input range and a high 94% efficiency. The modules offer 100W power with natural convection and 130W when fan-cooled.

Features

80V_AC to 264V_AC universal input range
High 94% efficiency
50.8mm x 76.2mm (2″ x 3″) open-frame compact size
100W with natural convection, 130W fan-cooled
Active PFC function
Continuous short-circuit protection

<150mW no-load input power consumption
5000m operating altitude
Meets IEC/EN/UL 60601-1 2 MOPP, IEC/EN60335-1
Approved safety IEC/EN/UL 62368-1
EMI safety meets Class I and Class II

Specifications

Output current
- 2.A to 8.34A (natural convection)
- 2.7A to 10.8A (fan-cooled)

12V, 24V, 36V, or 48V output voltages
1% ripple and noise
±2% voltage accuracy

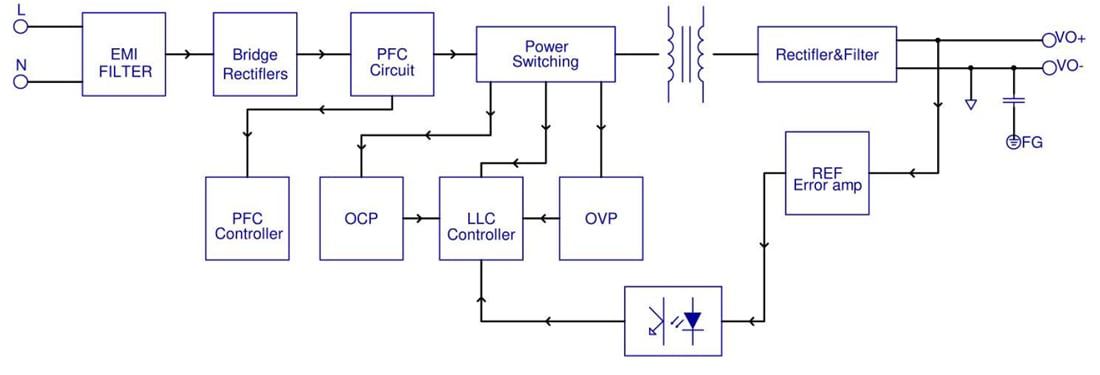

Block Diagram

Block Diagram - Cincon CFM130S 130W Open-Frame AC-DC Power Modules
