Cincon CFM04S 4W AC-DC Modules

Cincon CFM04S 4W Open-Frame or Encapsulated AC-DC Modules offer an 85V_ACto 305V_AC universal input range and up to 82% efficiency in a compact 0.76″ x 1.56″ package. The Cincon CFM04S 4W Open-Frame AC-DC Modules are Class II power modules with <0.075W no-load power and continuous short-circuit and over-voltage protections. The series provides options in PCB or connector terminations.

Features

4W rated power
85V_AC to 305V_AC universal input range
Up to 82% efficiency
0.76″ x 1.56″ dimensions
Class II
<0.075W no load power
Approvals
- IEC/EN/UL 62368-1
- EN 55032 Class B
- CISPR/FCC Class B
Design meets IEC/EN 60335-1

5000m operating altitude
Continuous short-circuit protection
Over-voltage protection
Over-voltage categories OVC II and OVC III

Specifications

3.3V to 24V output voltage
0.166A to 1.2A output current
100mV to 240mV ripple and noise

±3 to ±5 voltage accuracy
±1 line regulation
±3 to ±5 load regulation

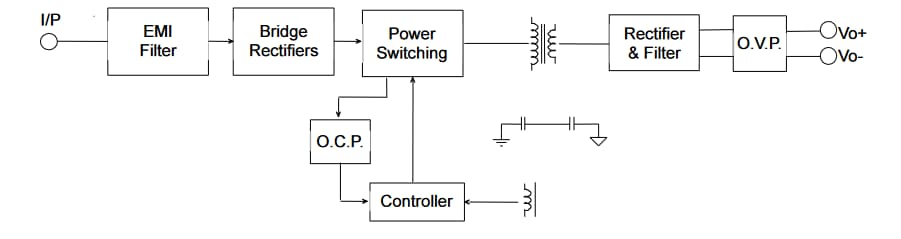

Block Diagram

Block Diagram - Cincon CFM04S 4W AC-DC Modules
