Cincon CBM70S 70W AC-DC Brick Power Supplies

Cincon CBM70S 70W AC-DC Brick Power Supplies are highly efficient, reliable, compact, high power density, single output AC/DC power modules that are fully protected against short circuit and over-voltage conditions. The all-in-one CBM70S power supplies are packaged in a 17mm ultra-low-profile half-brick package that is baseplate cooled and does not require a fan. Features include a wide operating temperature range, efficiency up to 89.5%, and a universal input range of 90V_AC to 264V_AC. The Cincon CBM70S 70W AC-DC Brick Power Supplies also offers a built-in EN55032 Class B filter and Safety IEC/EN/UL 62368-1 approval.

Features

Universal input range of 90V_AC to 264V_AC
Efficiency up to 89.5%
Full load with baseplate cooled and no fan required
Wide operating temperature range
17mm ultra-low-profile half-brick package
Built-in EN55032 Class B filter
All-in-one without external components

No-load input power consumption of <150mW
Over-temperature protection
Overvoltage protection
Continuous short circuit protection
Safety IEC/EN/UL 62368-1 approval
Meets Class Ⅰ
Operating altitude of 5000m

Specifications

12V, 24V, 35V, and 48V output voltage options
1.46A to 5.83A output current range
120mV to 480mV ripple and noise range
±1.0% voltage accuracy
±0.5% line regulation
±1% load regulation
Single output
Input
- 90V_AC to 264V_AC input voltage range
- 100V_AC to 240V_AC operating voltage range
- 47Hz to 63Hz input frequency range
- 1.5A maximum input current
- 3.5mA leakage current
- 100A inrush current
- 63V_AC to 77V_AC under-voltage protection range

Output
- 6ms holdup time
- ±10% output voltage trim range
- 110% to 150% over current protection
- 16V_DC to 63V_DC overvoltage protection range
1460µF to 5830µF load capacitance
Isolation
- 3000V_AC input to output
- 1800V_AC input to earth (ground)
- 500V_AC output to earth (ground)
- 100MΩ minimum isolation resistance
65kHz switching frequency
93% relative humidity, non-condensing
-40°C to +85°C operating/storage temperature range
5000m operating altitude

Cincon CBM70S 70W AC-DC Brick Power Supplies

Features

Specifications

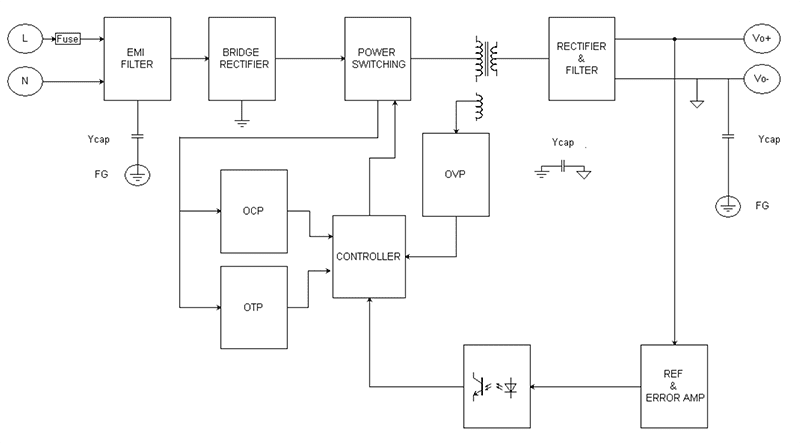

Electrical Block Diagram
