Cincon CBM150S AC-DC Switching Brick Power Modules

Cincon CBM150S AC-DC Switching Brick Power Modules offer a 150W AC-DC brick power supply with power factor correction (PFC). The Cincon CBM150S AC-DC Switching Brick Power Modules require no extremal components to pass EMI class B. These power modules are highly efficient, reliable, compact, high-power density modules. CBM150S is fully protected against short-circuit and over-voltage conditions. Cincon’s automated manufacturing methods and extensive testing and qualification program ensure that this brick power module series is extremely reliable.

Features

90V_ACto 264V_AC universal input range
150W power density
Up to 93% efficiency
12V to 54V output voltage
2.77A to 12.5A output current
Class I
Approvals
- IEC/EN/UL 62368-1
- EN55032 and CISPR/FCC Class B
5000m operating altitude

<0.5W no load input power consumption
<0.7W 54V no load input power consumption
Continuous short-circuit protection
Over-voltage protection
19.7mm ultra-low-profile package
Full load with baseplate cooled and no fan required
Built-in EMI filters, bulk capacitors, and output capacitors
17.W/inches³ power density
Wide operating temperature range

Cincon CBM150S AC-DC Switching Brick Power Modules

Features

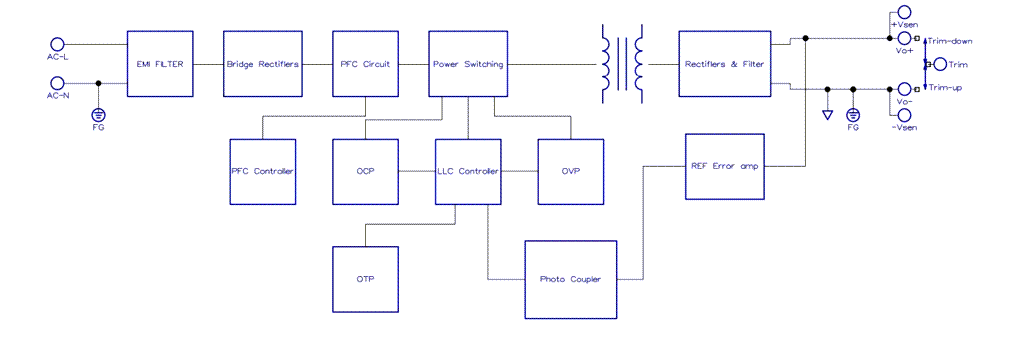

Block Diagram
