Cincon CBM101S AC-DC Switching Brick Power Modules

Cincon CBM101S AC-DC Switching Brick Power Modules are 100W AC-DC brick power supplies with universal input, power-factor correction (PFC), and multiple voltage output options. The Cincon CBM101S AC-DC Switching Brick Power Modules offer high efficiency (up to 94.5%) along with over-voltage, high-temperature, and short-circuit protections. These AC-DC brick power modules provide <0.5W no load input power consumption and up to 120W for 5s peak power operation.

Features

90V_AC to 264V_AC universal input range
Up to 94.5% efficiency
Class I
<0.5W no load input power consumption
120W for 5s peak power operation
Approvals
- IEC/EN/UL 62368-1
- EN55032 and CISPR/FCC Class B
5000m operating altitude
Continuous short-circuit protection

Over-voltage protection
Over-temperature protection
<8.5A low inrush current
17mm ultra-low-profile package
Full load without a heat sink
No fan required
Built-in EMI filters, bulk capacitors, and output capacitors
-40°C to +85°C operating temperature range

Cincon CBM101S AC-DC Switching Brick Power Modules

Features

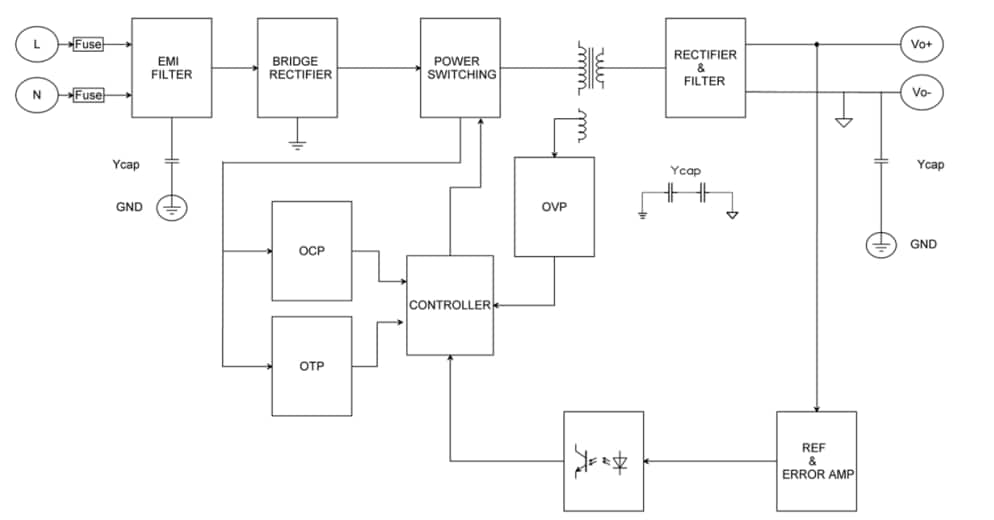

Block Diagram
