Chemi-Con SM Amorphous Choke Coils

Chemi-Con SM Amorphous Choke Coils offer low resistance due to the lead wire going through the core. These amorphous choke coils are iron-based that allows stable operation in high-temperature situations. The SM choke coils feature high safety and reliability standards since there are no layer-short circuits, and the magnetic flux leakage is very small. These amorphous choke coils are automotive-grade models and use noise filters for power sources and automotive electrical units.

Features

Low D.C. resistance due to the lead wire going through the core
Use of a Fe-base amorphous core for excellent operational stability at high temperatures
Automotive grade models

Significantly improved safety and reliability because layer short circuits will not occur and because the leakage magnetic flux is extremely small
AECQ200 and RoHS2 compliant

Specifications

-40°C to 130°C operating temperature range
-40°C to 130°C storage temperature range
20%RH to 95%RH operating humidity range
20%RH to 80%RH storage humidity range

20kHz to 500kHz operating frequency range
Type F (155°C) insulating type (Housing case)
UL94V-0 incombustibility (Housing case)

Chemi-Con SM Amorphous Choke Coils

Features

Specifications

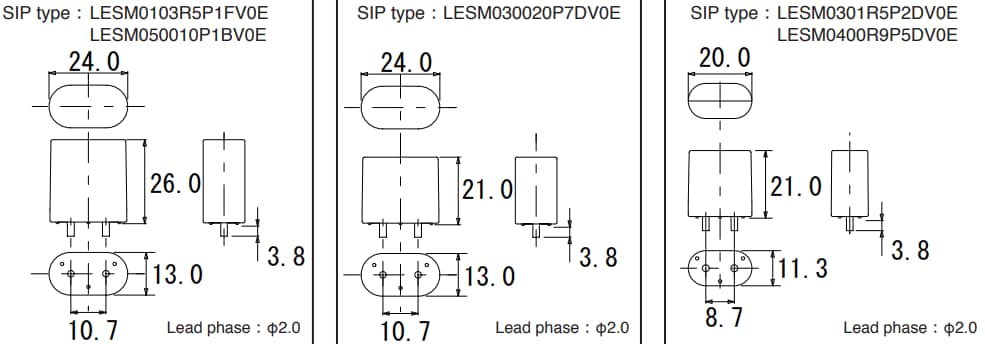

Dimension Diagram (mm)
