Chemi-Con LRB Snap-In Aluminum Electrolytic Capacitors

Chemi-Con LRB Snap-In Aluminum Electrolytic Capacitors feature a higher capacitance rating, high ripple current range, and lower ESR at higher frequencies than previous snap-in capacitors. The capacitors also offer a long product life with 5000-hours endurance at +105°C. The LRB series is RoHS2 compliant and a non-solvent-resistant type capacitor family. The Chemi-Con LRB Snap-In Aluminum Electrolytic Capacitors are ideal for smoothing ripple currents and high-frequency drive power conversion systems, including solar power conditioners.

Features

Higher ripple current on high-frequency band
Improved endurance with the ripple current
Large capacitance
Non-solvent-resistant type

RoHS2 compliant
Ideal for smoothing ripple current and high-frequency drive power conversion systems applications, including solar power conditioners

Specifications

400V_DC to 450V_DC rated voltage range
85μF to 330μF capacitance range
±20% capacitance tolerance

4.58A_rms to 6.85A_rms rated ripple current at +105°C
5000-hour endurance rating at +105°C
-40°C to +105°C operating temperature range

Chemi-Con LRB Snap-In Aluminum Electrolytic Capacitors

Features

Specifications

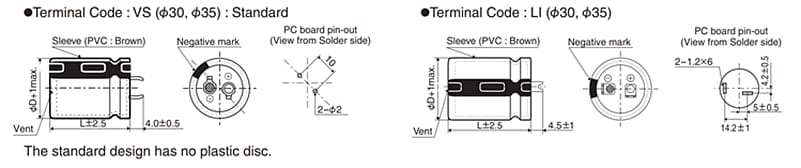

Dimensions (mm)

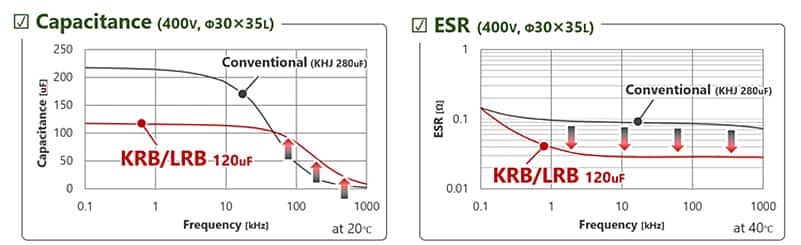

Performance Graphs
