Chemi-Con HXF Aluminum Organic Polymer Capacitors

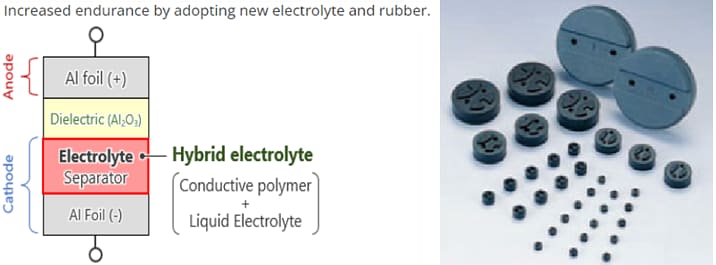

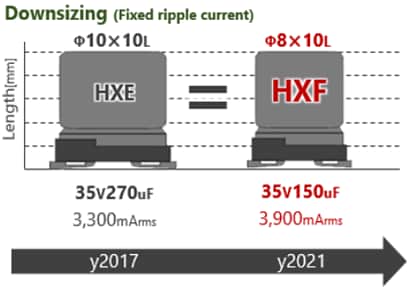

Chemi-Con HXF Aluminum Organic Polymer Capacitors provide higher ripple current capability and downsizing, making this series ideal for use in automotive electrical equipment. These conductive polymer hybrid aluminum electrolytic capacitors (AECs) offer high reliability and 4000 hours of endurance at +135°C with ripple current. The HXF series has a guaranteed short-time operating temperature of +150°C. Other features include a 25V_DC to 63V_DC rated voltage range and a 33μF to 330μF capacitance range. Chemi-Con HXF Aluminum Organic Polymer Capacitors are AEC-Q200 and RoHS 2 compliant as well as halogen-free. Because HXF AECs are designed for both high reliability and high ripple current capability, they can reduce component count and contribute to the downsizing of products.
