Central Semiconductor CRU247 Rectifier Diodes

Central Semiconductor CRU247 Rectifier Diodes are hyperfast recovery rectifiers designed for high-current switching applications. These diodes are manufactured in a TO-247 case and are used with SuperJunction MOSFETs. The CRU247 rectifier diodes offer dual diode configuration, fast reverse recovery time, and high current capability. These diodes feature 600V maximum repetitive peak reverse voltage, 600V maximum DC blocking voltage, and a -55°C to 150°C operating temperature range. The CRU247 rectifier diodes are through-hole mounted and are compliant with RoHS and REACH. Typical applications include flyback diode configurations, DC/DC converters, and switch-mode power supplies.

Features

Designed for high-current switching applications
Intended for use with SuperJunction MOSFETs
Dual diode configuration

Fast reverse recovery time
High current capability
RoHS-compliant

Specifications

600V maximum repetitive peak reverse voltage
600V maximum DC blocking voltage
CRU24715-600 SL (maximum ratings (T_C=25°C)):
- 15A diode forward current (T_C=130°C)
- 30A diode forward current (both legs)
- 30A repetitive peak surge current (t_p=8.3ms)
- 140A peak surge current (t_p=8.3ms, half-sine)
- 50W power dissipation

CRU24730-600 SL (maximum ratings (T_C=25°C)):
- 30A diode forward current (T_C=130°C)
- 60A diode forward current (both legs)
- 60A repetitive peak surge current (t_p=8.3ms)
- 175A peak surge current (t_p=8.3ms, half-sine)
- 125W power dissipation
-55°C to 150°C operating temperature range
TO-247 case

Applications

Flyback diode configurations
DC/DC converters
Switch-mode power supplies

Central Semiconductor CRU247 Rectifier Diodes

Features

Specifications

Applications

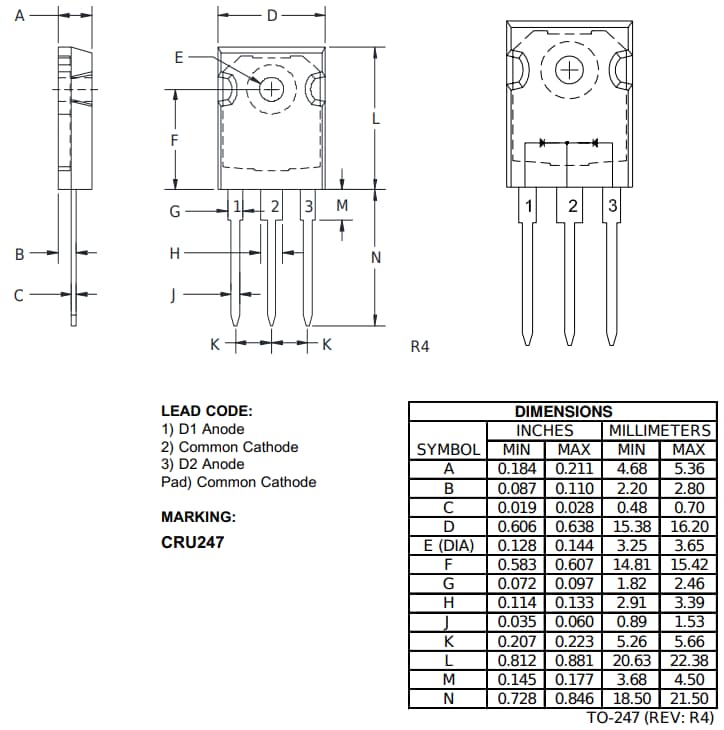

Mechanical Outline
