Central Semiconductor CAK3 & CAK6 TVS Diodes

Central Semiconductor CAK3 and CAK6 TVS Diodes are designed to protect voltage-sensitive components from high voltage transients. The voltage transients of TVS diodes range from 12V to 380V (3kA) and 42V to 240V (6kA). These CAK3 and CAK6 diodes are bi-directional transient voltage suppressors manufactured with glass passivated chips for optimum reliability. The TVS diodes offer a very low clamping voltage of 28V and ESD protection of data lines in accordance with IEC 61000-4-2. These CAK3 and CAK6 TVS diodes offer -55°C to 125°C of operating junction temperature range and -55°C to 150°C of the storage temperature range. The TVS diodes are ideal for high voltage 5G transmitter applications.

Features

Low clamping voltage
Bi-directional

ESD protection of data lines in accordance with IEC 61000-4-2

Specifications

CAK6:
- 42V to 240V reverse stand-off voltage range
- 47V to 250V minimum breakdown voltage range
- 100V to 340V maximum clamping voltage range
CAK3:
- 12.8V to 380V reverse stand-off voltage range
- 14V to 401V minimum breakdown voltage range
- 28V to 520V maximum clamping voltage range

-55°C to 125°C operating junction temperature range
-55°C to 150°C storage temperature range
10mA test current
20µA maximum reverse leakage current

Central Semiconductor CAK3 & CAK6 TVS Diodes

Features

Specifications

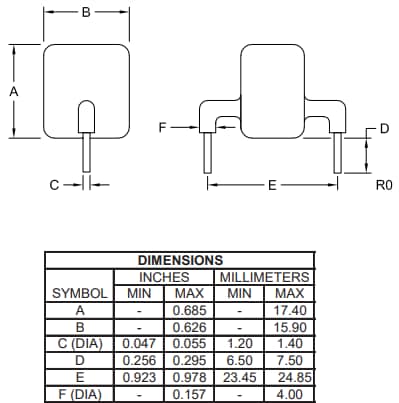

Mechanical Drawing
