Carlo Gavazzi DMB Multi-Function Timers

Carlo Gavazzi DMB Multi-Function Timers are multi-voltage timers with seven knob selectable functions and seven knob-selectable time ranges. The selectable time ranges within 0.1s and 100h. These timers feature automatic or manual start, ≤0.2% repeatability, and combined AC and DC power supply. The DMB timers offer LED indication for relay status and power supply ON. These timers are designed for mounting on DIN-rail in accordance with DIN/EN 50 022 or plug-in. The DMB timers are available in 22.5mm Euronorm or 36mm plug-in module housing.

Features

0.1s to 100h time range
7 knob-selectable functions
- Op – delay on operate
- In – interval
- Io – interval on trigger open
- Id – double interval
- Dr – delay on release
- R – symmetrical recycler ON first
- Rb – symmetrical recycler OFF first
Knob selection of time range
Knob-adjustable time setting

Automatic or manual start
≤0.2% repeatability
8A SPDT or 8A DPDT relay output
For mounting on DIN-rail in accordance with DIN/EN 50 022 or plug-in
22.5mm Euronorm or 36mm plug-in module housing
Combined AC and DC power supply
LED indication for relay status and power supply on

Carlo Gavazzi DMB Multi-Function Timers

Features

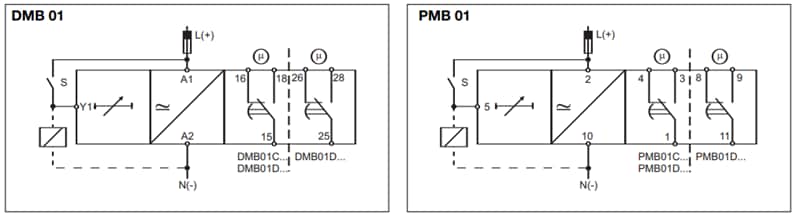

Wiring Diagrams

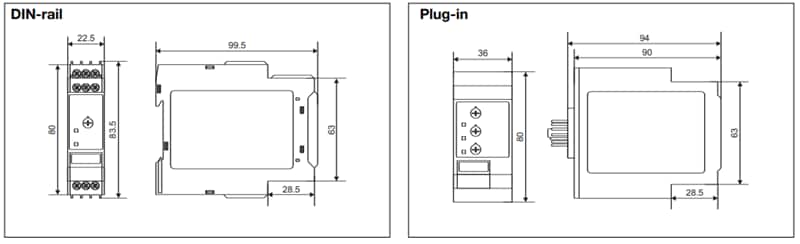

Dimensions (mm)

Videos
