Cal Test Electronics Insulated Alligator Test Clips are rated to 1000V CAT III and 600V CAT IV and carry the European Union CE mark. The clips comply with IEC 61010-031 and RoHS 2 standards. The fully insulated alligator test clips provide the extra protection needed in high-category environments. Cal Test Electronics Insulated Alligator Test Clips feature a spring-loaded, three-incisor mouth to ensure a tight grip on screw heads or flat-headed objects.

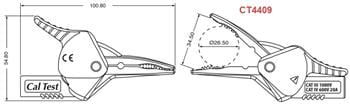

The CT4409/CT4410 series includes large insulated alligator clips with a 4mm sheathed jack for standard or sheathed banana plugs. CT4409/CT4410 clips are rated to 20A and ergonomically curved. The slim beak jaw allows the clip to reach into narrow spaces while the jaw opens to 34.5mm.
The CT4415/CT4416 series offers medium-insulated alligator clips with a 4mm sheathed jack for standard or sheathed banana plugs. The clips have a jaw opening that accommodates conductors up to ø7mm (diameter) and are rated to 10A.

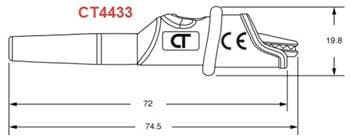

The CT4433/CT4434 versions are medium-insulated alligator clips with a DIY solder connection, allowing users to build customized lead assemblies. The clips fit wires up to 13AWG, are rated to 10A, and have a jaw opening for conductors up to ø7mm (diameter).
The CT4439 is a pair of medium-insulated alligator clip adapters with a 2mm pin jack. The CT4439 clips are rated to 10A, accommodate conductors up to ø7mm (diameter), and connect to 2mm pin tips or standard DMM probes.
